OUZXMAG,00007C3 -19-09SEP00-1/2

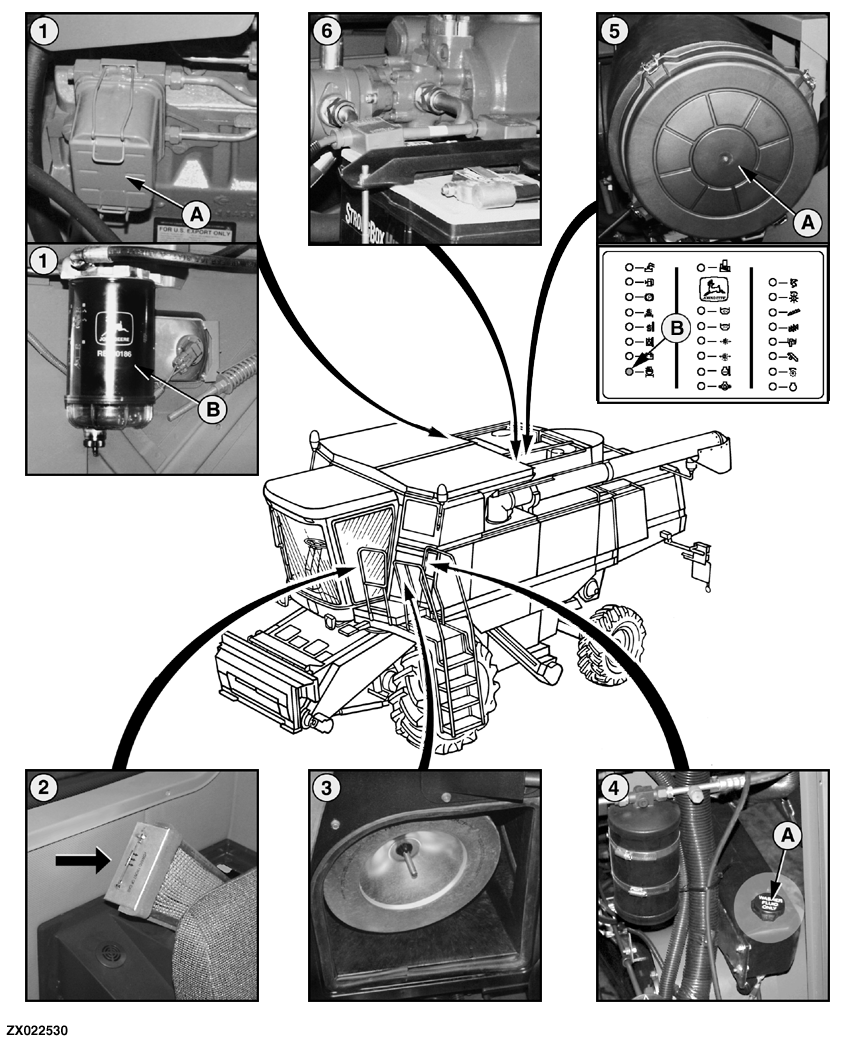

1. Fuel Filter-Replace filter (A), water separator filter (B) and bleed system.

2. Recirculating Filter-Remove tray, reach in and lift out filter. Clean or replace filter. Replace filter in same position as when removed.

3. Cab Fresh Air Filter-Turn knob and pull out door with dirt tray. Remove wing nut and pull out filter. Clean or replace filter.

4. Windshield Washer Reservoir (Optional).

5. Air Cleaner Element-Service primary filter (A) only when shown by warning light (B). Check precleaner for plugging. Check for leaks and for collapse of aspirator tube. Replace safety element if plugged.

6. Batteries-Clean off top of batteries and check level in each cell. Fill to bottom of filler neck with distilled water.

OUZXMAG,00007C3 -19-09SEP00-2/2
