Replacing Water Separator Filter

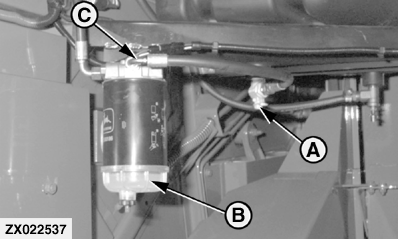

Close valve (A).

Drain fuel from separator (B). Remove and replace filter.

Open valve (A). Let air bleed through (B) and hose (C). See "Bleeding Fuel Lines" in this Section, if necessary.

OUZXMAG,00007CA -19-09SEP00-1/1
