Power Distribution Board - Number 3

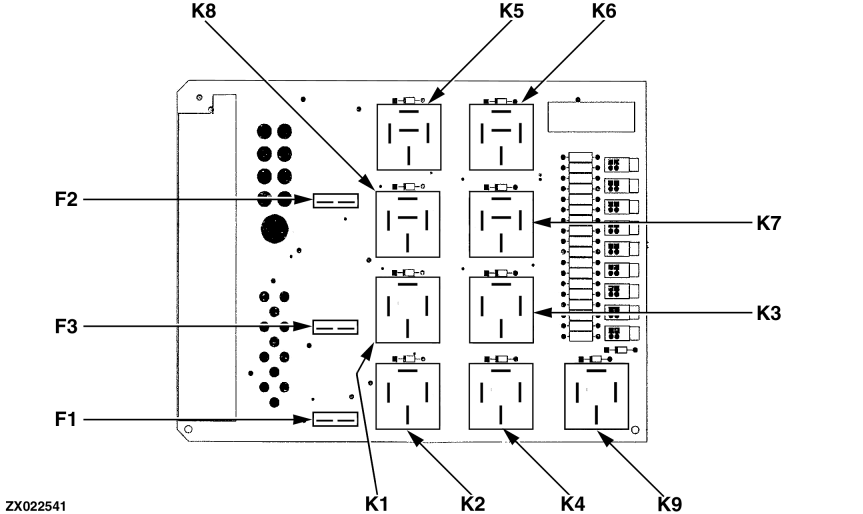

Power Distribution Board - Number 3, Fuses and Relays
|
Fuse
F1
Not Used
F2
30A, Spreader Speed
F3
Not Used
Relays
K1
Not Used
|
K2
Not Used
K3
Not Used
K4
Hillmaster Lower
K5
Vane Angle Right/Spreader Speed Decrease
K6
Vane Angle Left/Spreader Speed Increase
K7
Not Used
K8
Not Used
K9
Not Used
|
|
|
OUZXMAG,00007CF -19-09SEP00-1/1
|
|
