Deck Plate Sensor Zero Calibration

The deck plate position sensor is calibrated using the deck plate calibration procedure. The deck plate calibration procedure must be performed before initial use or when the deck plate position sensor is replaced.

Prepare Header For Calibration:

  • Attach corn head to the combine and attach header harness to the combine harness.
  • Make sure deck plate position sensor is operating.
  • Start the combine.

OUZXMAG,00007E9 -19-11OCT00-1/10

Press the diagnostic switch. dIA will appear on the triple display tachometer.

ZX018729

OUZXMAG,00007E9 -19-11OCT00-2/10

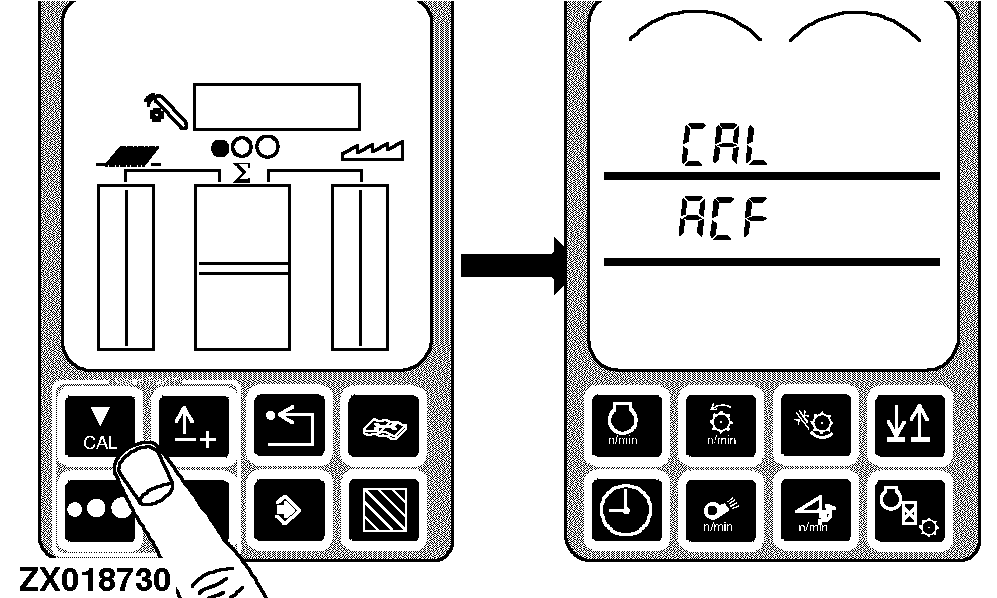

Press the calibration switch. CAL and ACF will appear on the tachometer.

ZX018730

OUZXMAG,00007E9 -19-11OCT00-3/10

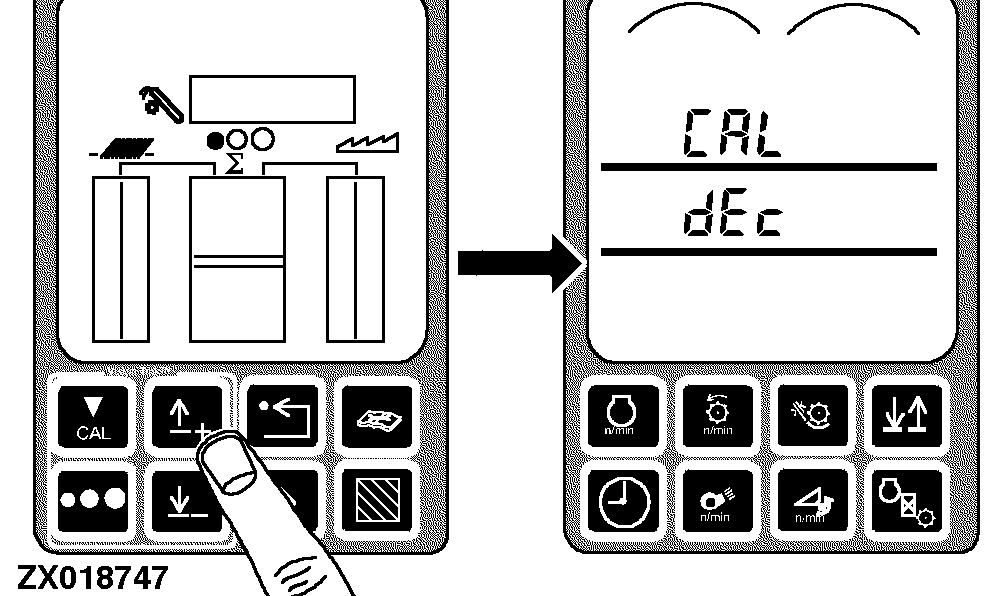

Press the up or down arrow switch until CAL and the dEc calibration mode appear on the tachometer.

ZX018747

OUZXMAG,00007E9 -19-11OCT00-4/10

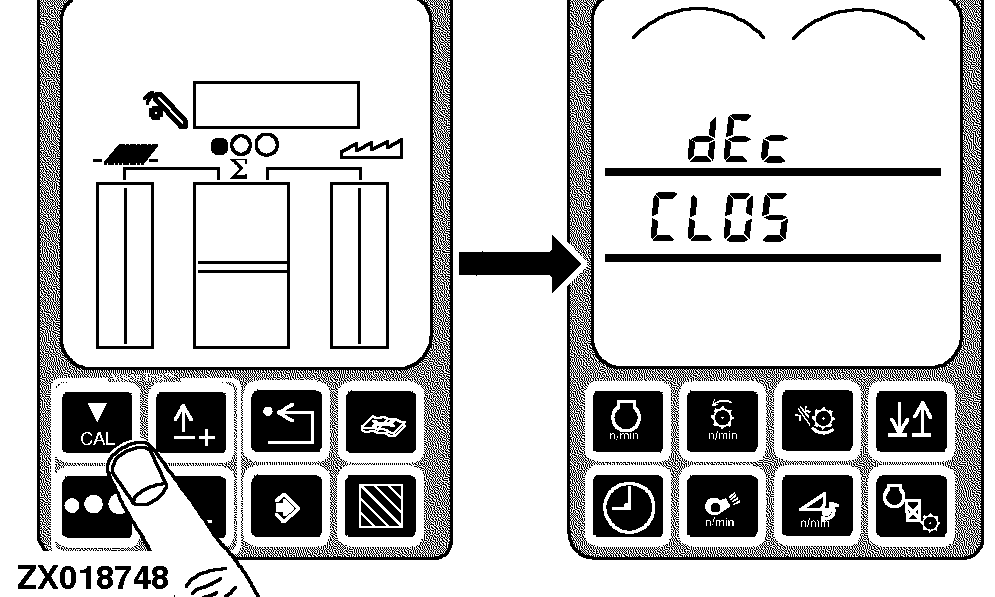

Press the calibration button. dEc and CLOS will appear on the tachometer.

ZX018748

OUZXMAG,00007E9 -19-11OCT00-5/10

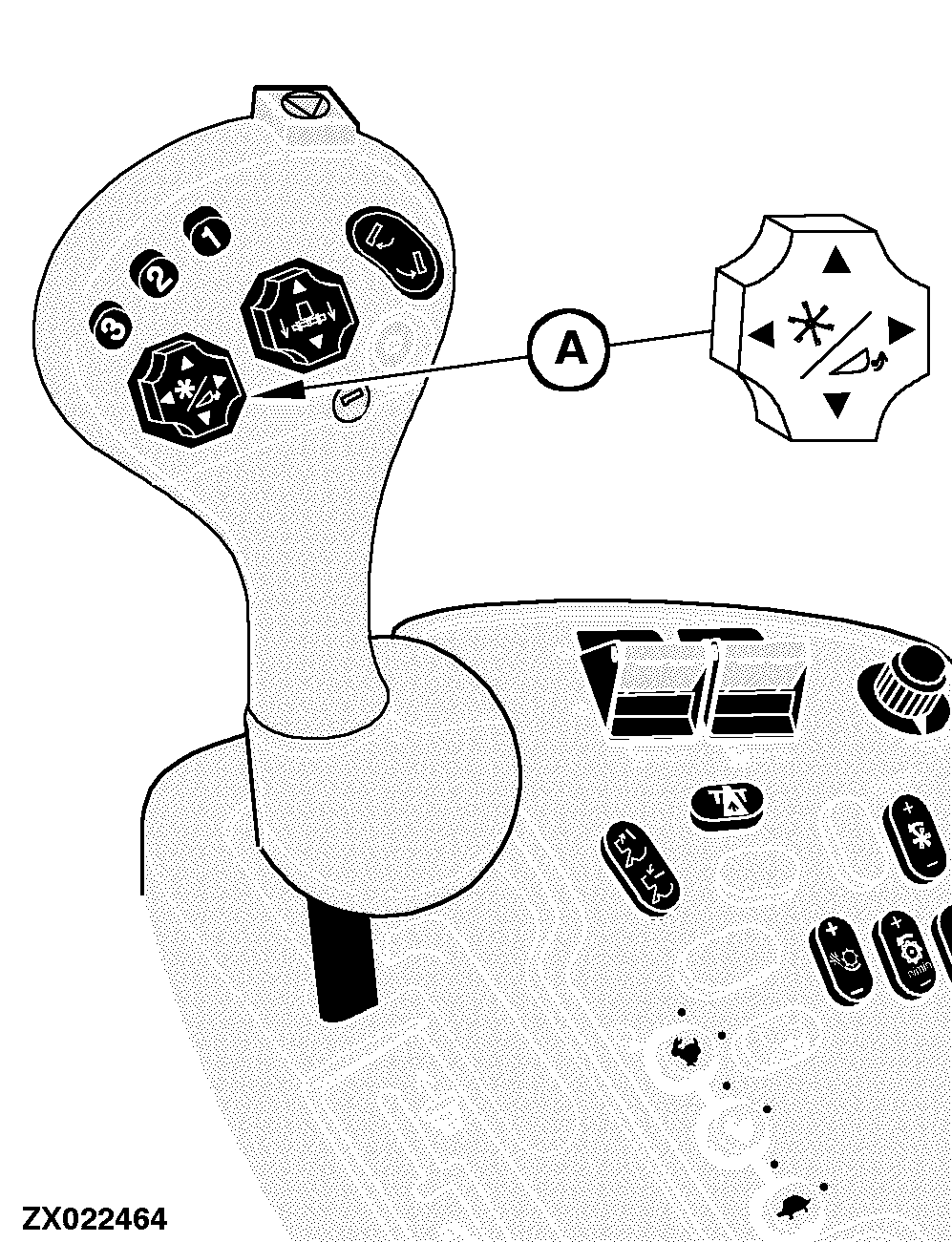

Sensor minimum setting: Press and hold the right side of the reel fore/aft switch (A) until the deck plates are completely closed.

ZX022464

OUZXMAG,00007E9 -19-11OCT00-6/10

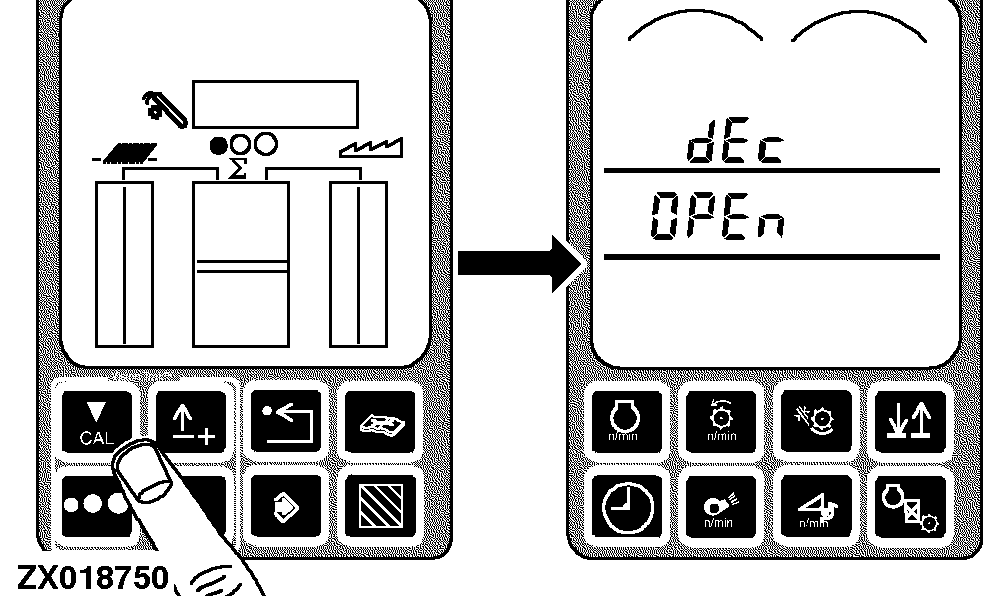

Press the calibration switch until dEc and OPEn appear on the tachometer.

ZX018750

OUZXMAG,00007E9 -19-11OCT00-7/10

Sensor maximum setting: Press and hold the left side of the reel fore/aft switch (A) until the deck plates are completely open.

ZX022464

OUZXMAG,00007E9 -19-11OCT00-8/10

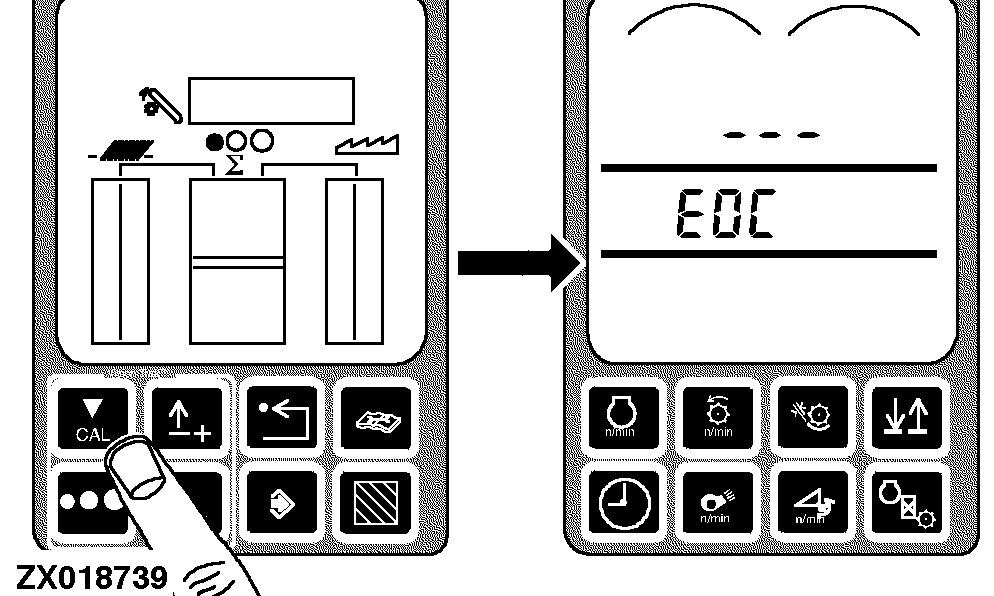

Press the calibration switch. EOC will appear on the tachometer.

ZX018739

OUZXMAG,00007E9 -19-11OCT00-9/10

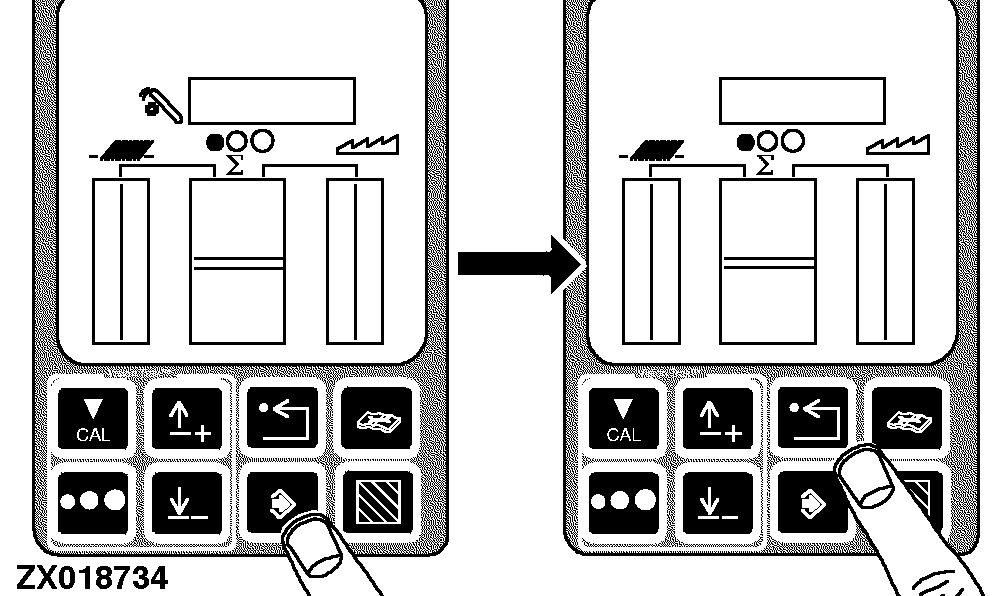

Press the enter switch to store the calibration value or press the back arrow switch to abort the calibration (and not save values). Press the back arrow switch to return to normal operation.

ZX018734

OUZXMAG,00007E9 -19-11OCT00-10/10
