Towing the Combine

Prepare combine as shown under "Transporting under Own Power".

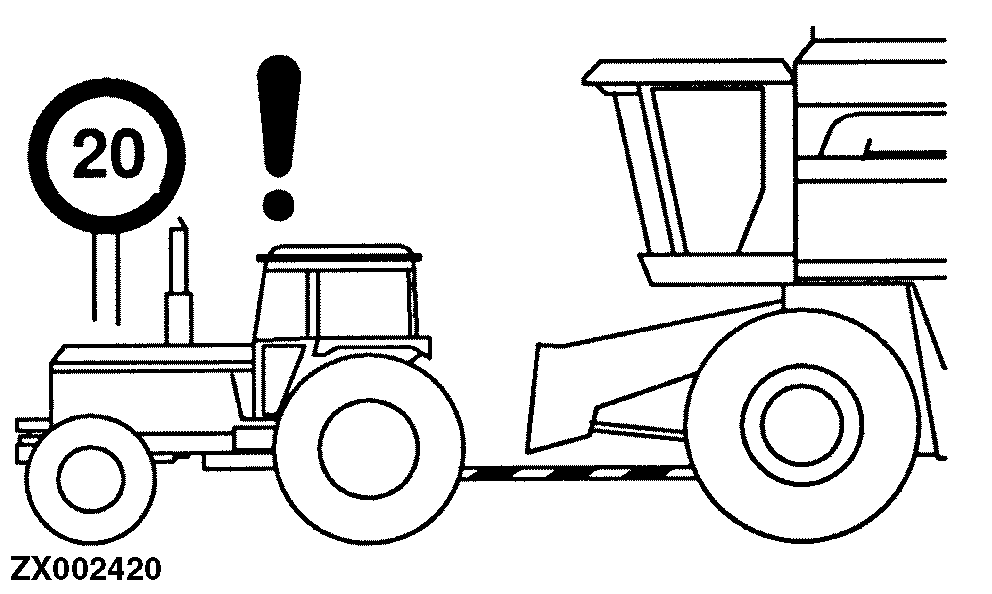

CAUTION: Never tow combine with a wire rope. Always use a suitable towbar. Connect towbar to towing eye on front axle.

Tow combine at a safe and suitable speed, not to exceed 20 km/h (12.4 mph).

IMPORTANT: Towing at speeds higher than 20 km/h (12.4 mph) could damage tires, transmission and final drives.

Comply with local traffic regulations when towing the harvester, e.g. turn on flashing warning lights, display warning signs etc.

Have a driver in the operator's seat to steer and brake the combine.

Place gear shift and ground speed drive control levers in neutral position

IMPORTANT: During towing, it is essential that the three-speed transmission is in neutral.

Release parking brake.

ZX,OMCTS012163 -19-01SEP98-1/1
