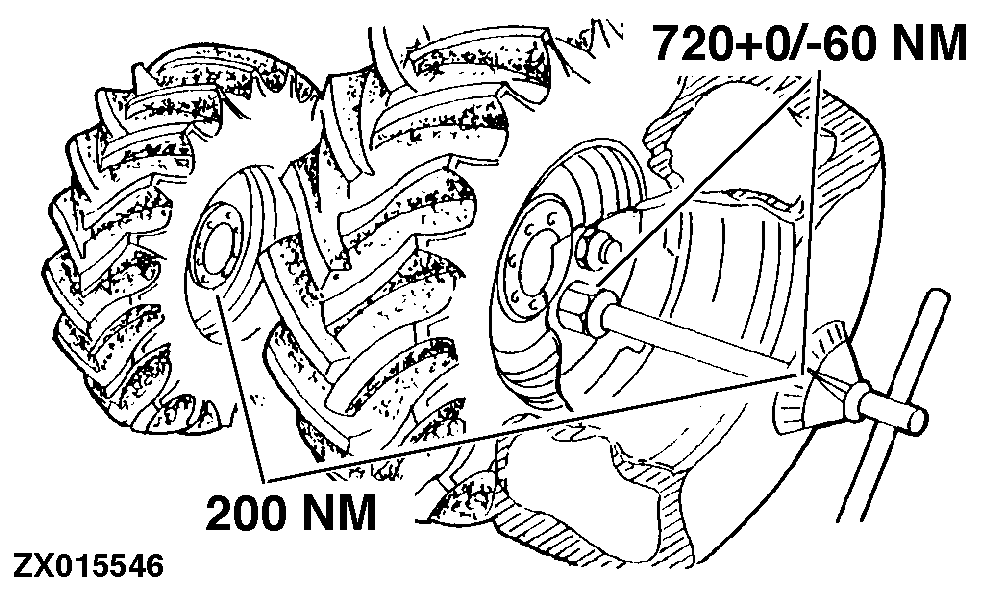

Wheel Bolts and Nuts

Rear Wheels

After the first hour of operation and again after the first 20 to 25 hours of operation, check and tighten rear wheel bolts to 200 N·m (150 lb-ft).

Front Wheels

After the first hour of operation and again after the first 20 to 25 hours of operation, check and tighten front wheel nuts to 720 +0/-60 N·m (531 +0/-44 lb-ft).

ZX015546

ZX,OMCTS012166 -19-01SEP98-1/1
