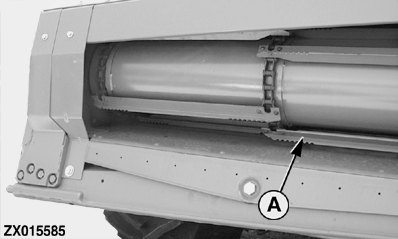

Conveyor chain must be 3 mm (0.12 in.) for grain or 25 mm (0.98 in.) for corn as measured between a conveyor slat and feeder house bottom, directly under feeder drum at (A).
ZX,OMCTS012203 -19-01SEP98-1/1
