Adjusting Feeder House Top Shaft Stripper

If the top feeder house shaft should wrap, check to see that the strippers (B) are adjusted as follows:

Remove top feeder house door.

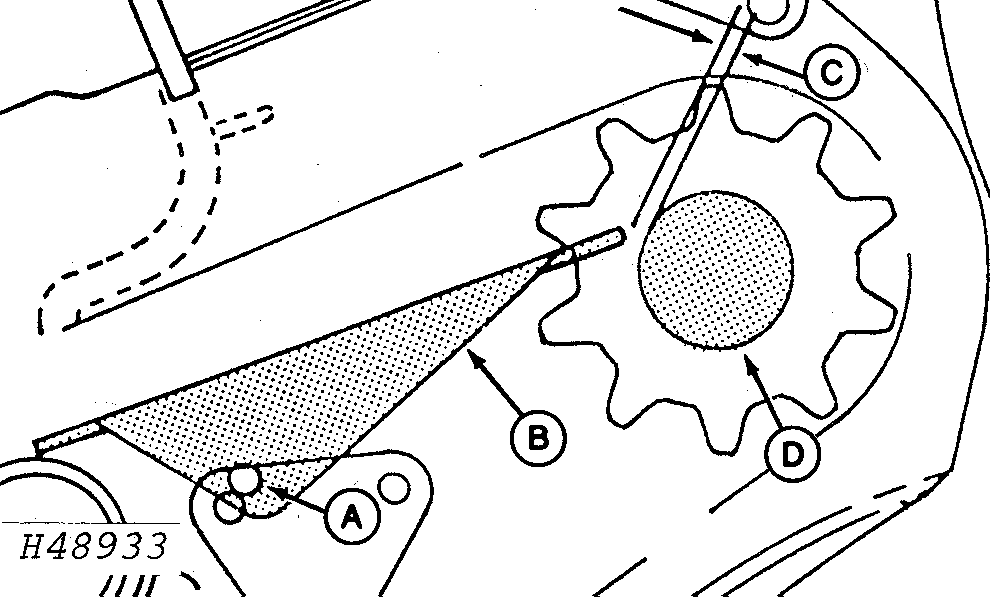

Loosen bolts (A) and set stripper (B) to 3 mm (0.12 in.) (C) from top shaft (D).

Tighten bolts (A) and replace top door.

A-Bolts
B-Stripper
C-3 mm (0.12 in.)
D-Top shaft

ZX,OMCTS012278 -19-01SEP98-1/1
