Checking Feeder House Top Shaft Sprockets

After 1000 hours, depending on the crops being harvested, check the upper shaft sprockets for wear.

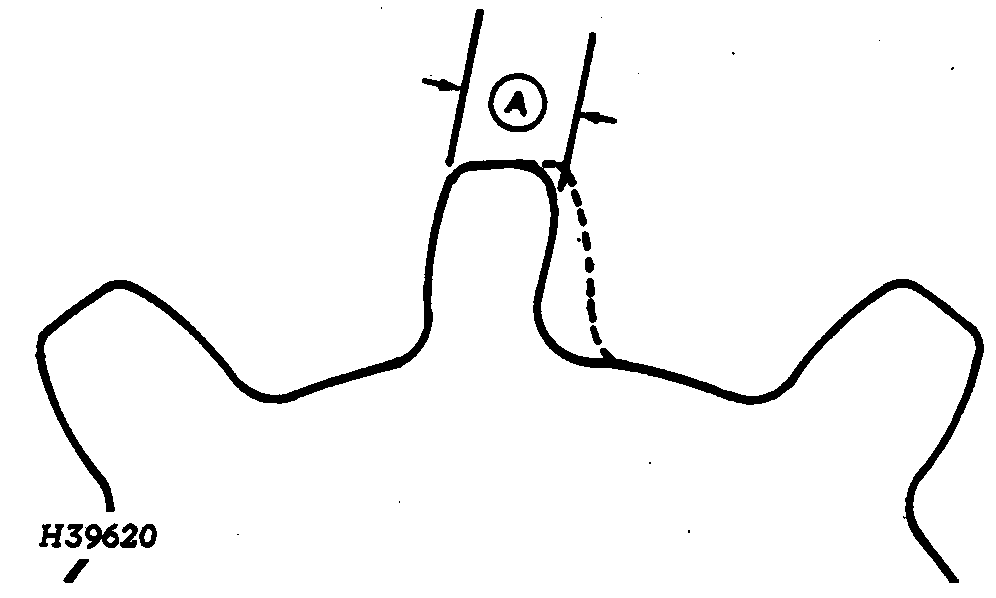

If these sprockets are worn past 12 mm (0.47 in.) (A), the shaft with the sprockets can be reversed for additional wear. See your John Deere dealer.

ZX,OMCTS012279 -19-01SEP98-1/1
