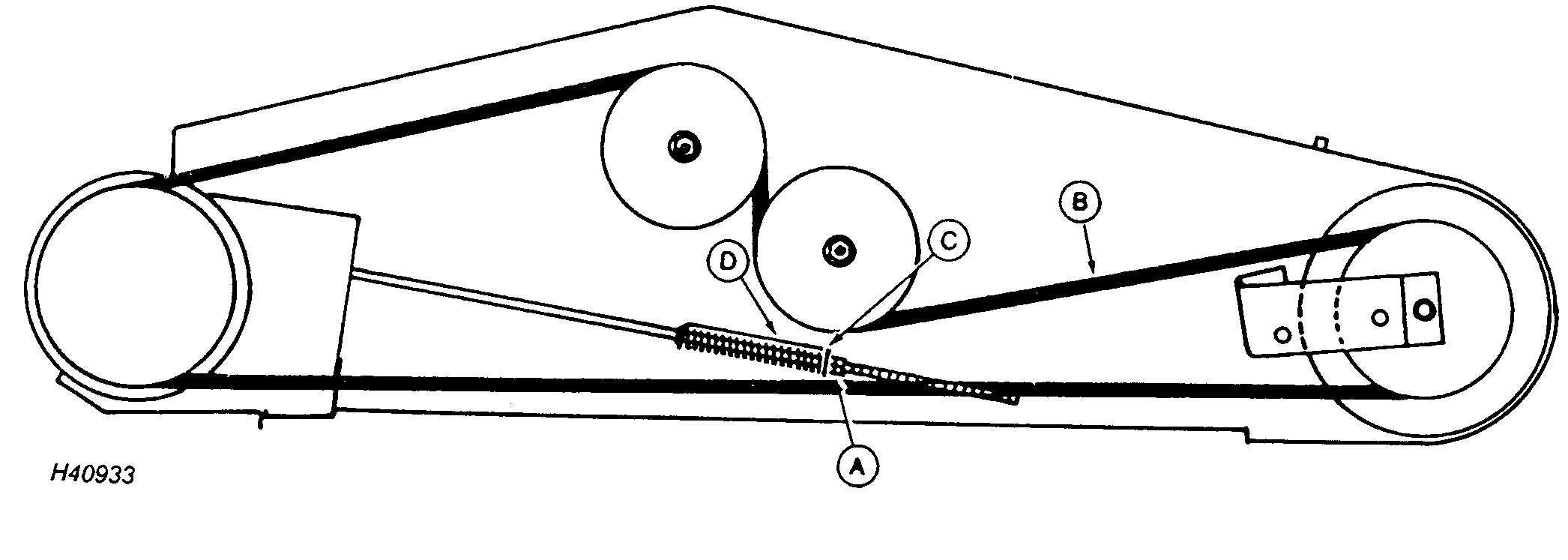

A-Nuts

B-Belt

C-Washer

D-Gauge

Remove shields.

Loosen nuts (A) to release tension on idlers.

Remove belt (B).

Install new belt.

Tighten nuts until washer (C) aligns with end of gauge (D).

Install shields.
