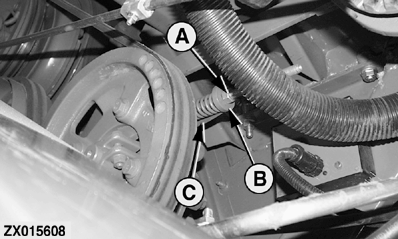

The beater belt idler is located on the left-hand side of the combine behind the tailings elevator.
Tighten nut (A) until washer (B) aligns with the end of the spring gauge (C).
