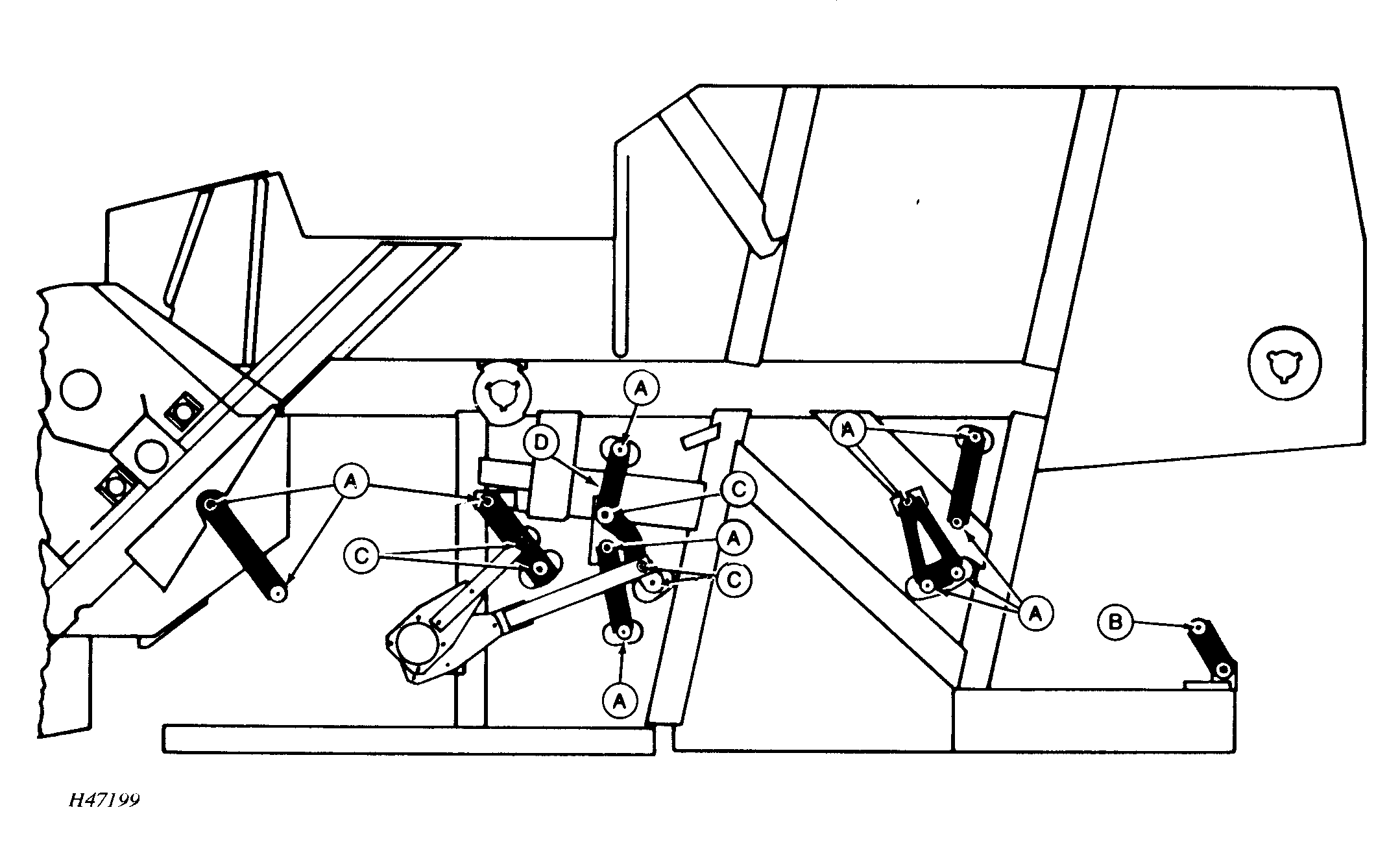

A-130 N·m (95 lb-ft)

B-100 N·m (75 lb-ft)

C-320 N·m (235 lb-ft)

D-Nodular iron swinger arm

Replace bushings when tar or grease start to work out of the bushing material.

CAUTION: Engine must be off and key removed.

NOTE: Only the bushings in the nodular iron swinger arm (D) can be replaced. The bushings in the aluminum die cast swinger arms are not replaceable. The aluminum swinger arms and bushings are replaced together when needed.

Find the mid-stroke of hangers by moving the shoe crank (on left-hand side) to its highest or lowest position.

Replace rubber bushings on one swinger arm at a time. This keeps the chaffer or sieve from moving out of position.

Lightly coat each bushing with a light weight engine oil or mineral oil, before installation.

After installing bushings, tighten hardware as specified.

ZX,OMCTS012330 -19-01SEP98-1/1
