Replacing Cleaning Shoe Belt

CAUTION: Engine must be off and key removed.

This belt drives the conveyor augers, chaffer and sieve.

Loosen idlers.

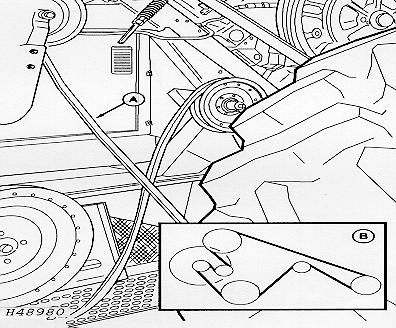

Roll belt (A) under secondary countershaft belt, tailings elevator belts and clean grain elevator belt.

Install new belt. See (B).
