Adjusting Chaffer, Chaffer Extension and Sieve

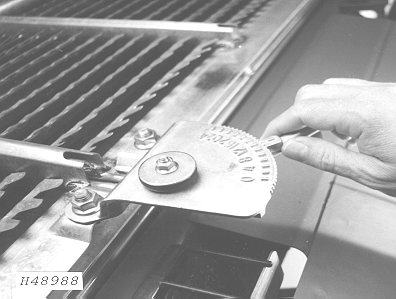

Adjust the chaffers and sieve with the adjusting lever and notched dial scale.

One notch on the dial scale is equal to 1 mm (0.04 in.).

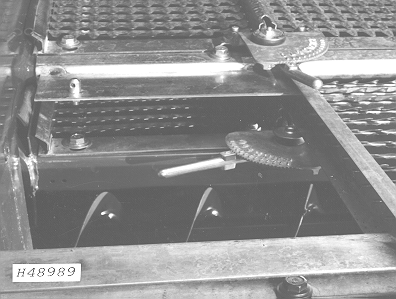

Remove the chaffer fingers to access the sieve adjusting lever.

ZX,OMCTS012336 -19-01SEP98-1/1
