De-Awning Plates on Concave

De-awning plates are standard on small grain concave and universal concave.

3 articulated plates cover the front of the concave as efficient deawning device in hard to thresh barley or durum wheat.

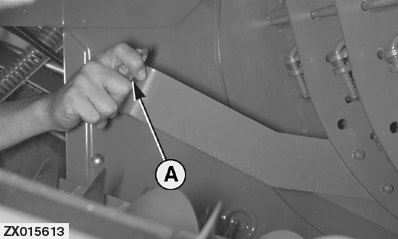

De-awning plates are operated with a screw handle (A) for quick and easy operation. Turn handle (A) clockwise to open de-awning plates and counterclockwise to close them.

The handle (A) is reached through the left service opening on the concave.
