Installing and Timing Unloading Auger (All Augers)

Follow REMOVAL steps in REVERSE order to install auger.

CAUTION: Shut off engine and remove key.

Spacer (A) must be on drive shaft at gearcase before sliding auger on shaft.

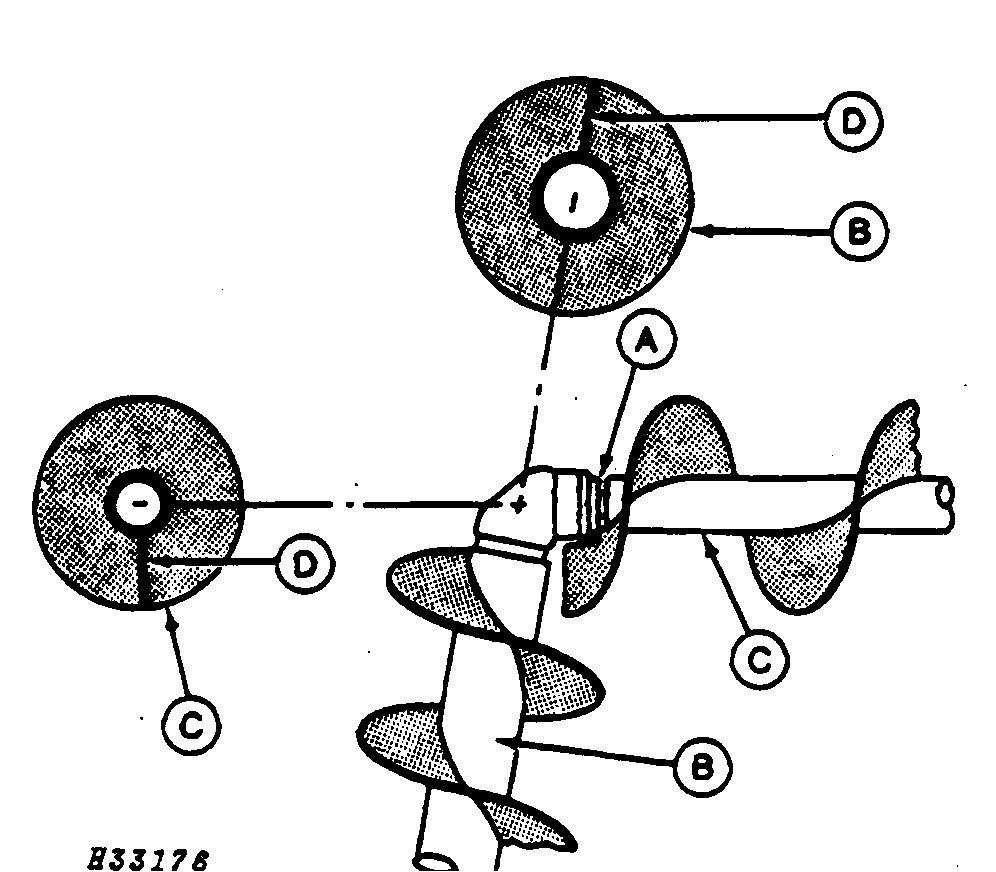

Time vertical auger (B) with horizontal auger (C). The ends of the flights should be approximately 90° apart as shown. Augers will be damaged if not timed correctly.

A-Spacer
B-Vertical auger
C-Horizontal auger
D-End of auger flights
