Cleaning Element

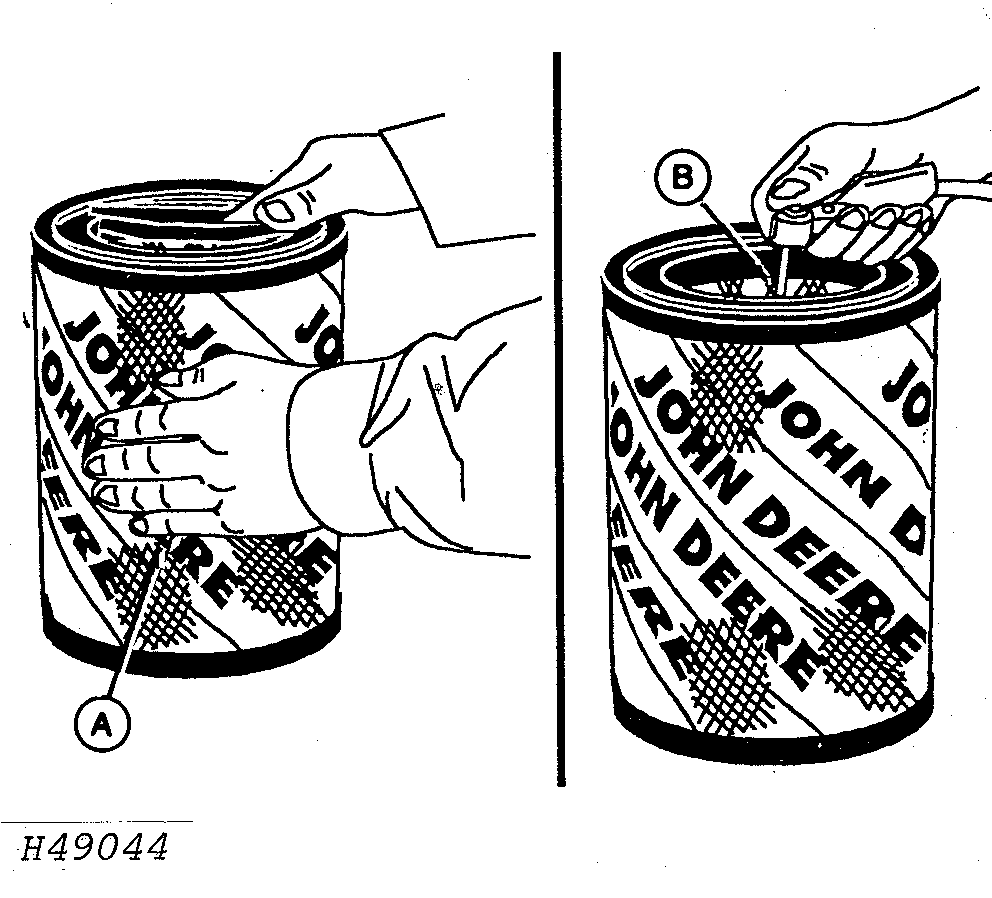

1. Pat sides of element gently (A) to loosen dirt. Do not tap element against a hard surface.

2. Clean dry element with compressor (B). Hold nozzle next to inner surface, and move up and down pleats. Pressure should not exceed 600 kPa (6 bar; 85 psi).

IMPORTANT: Do not direct air against outside of element, as it might force dirt through to inside.

3. Repeat step 1 and 2 to remove additional dirt.

4. Inspect element before reinstalling.

ZX,OMCTS012479 -19-01SEP98-1/1
