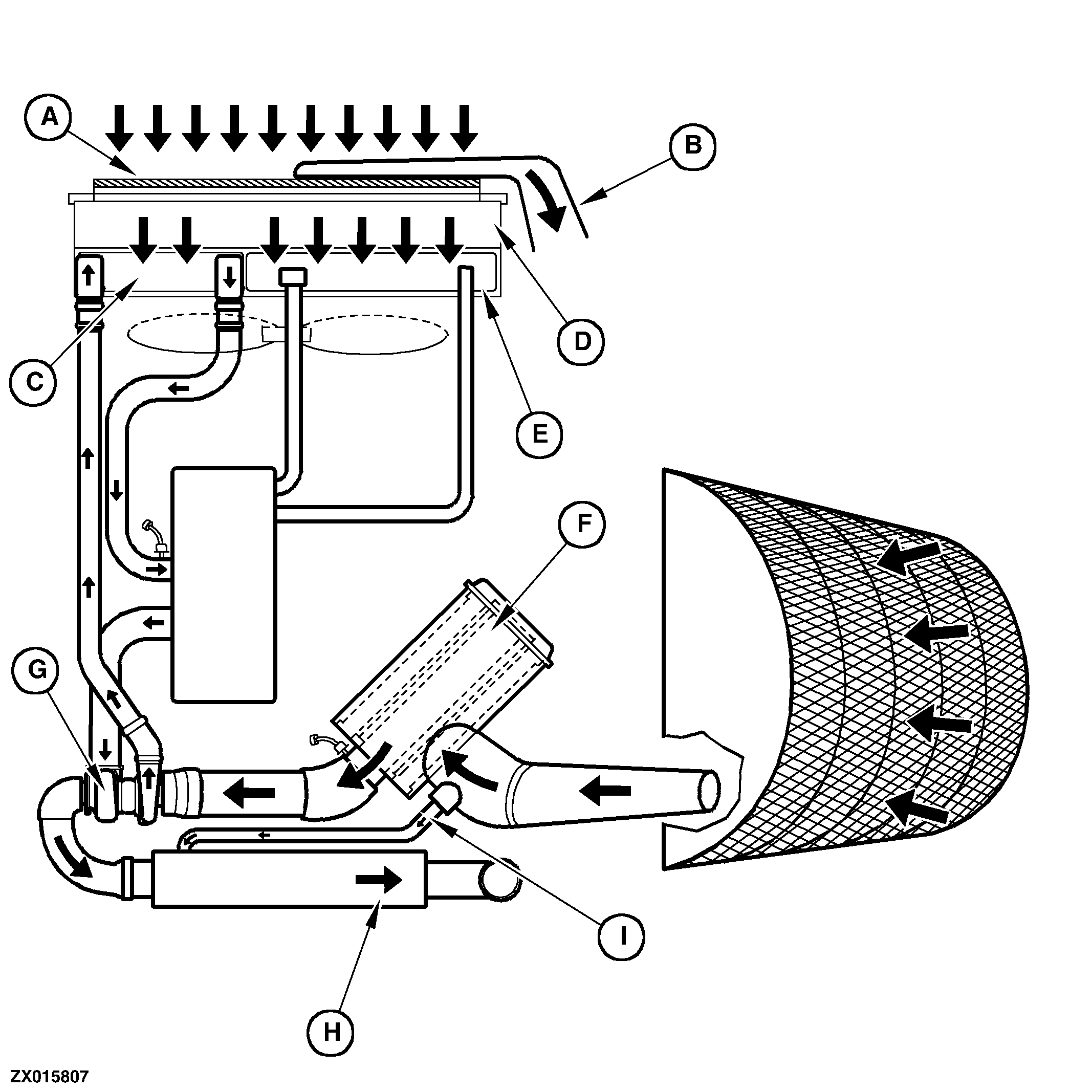

A-Rotary screen
B-Suction pipe and channel
C-Air-to-air aftercooler

D-Hydraulic oil cooler/condenser
E-Radiator

F-Air cleaner with safety element
G-Turbocharger

H-Muffler
I-Air cleaner suction pipe

ZX,OMCTS012594 -19-01SEP98-1/1
