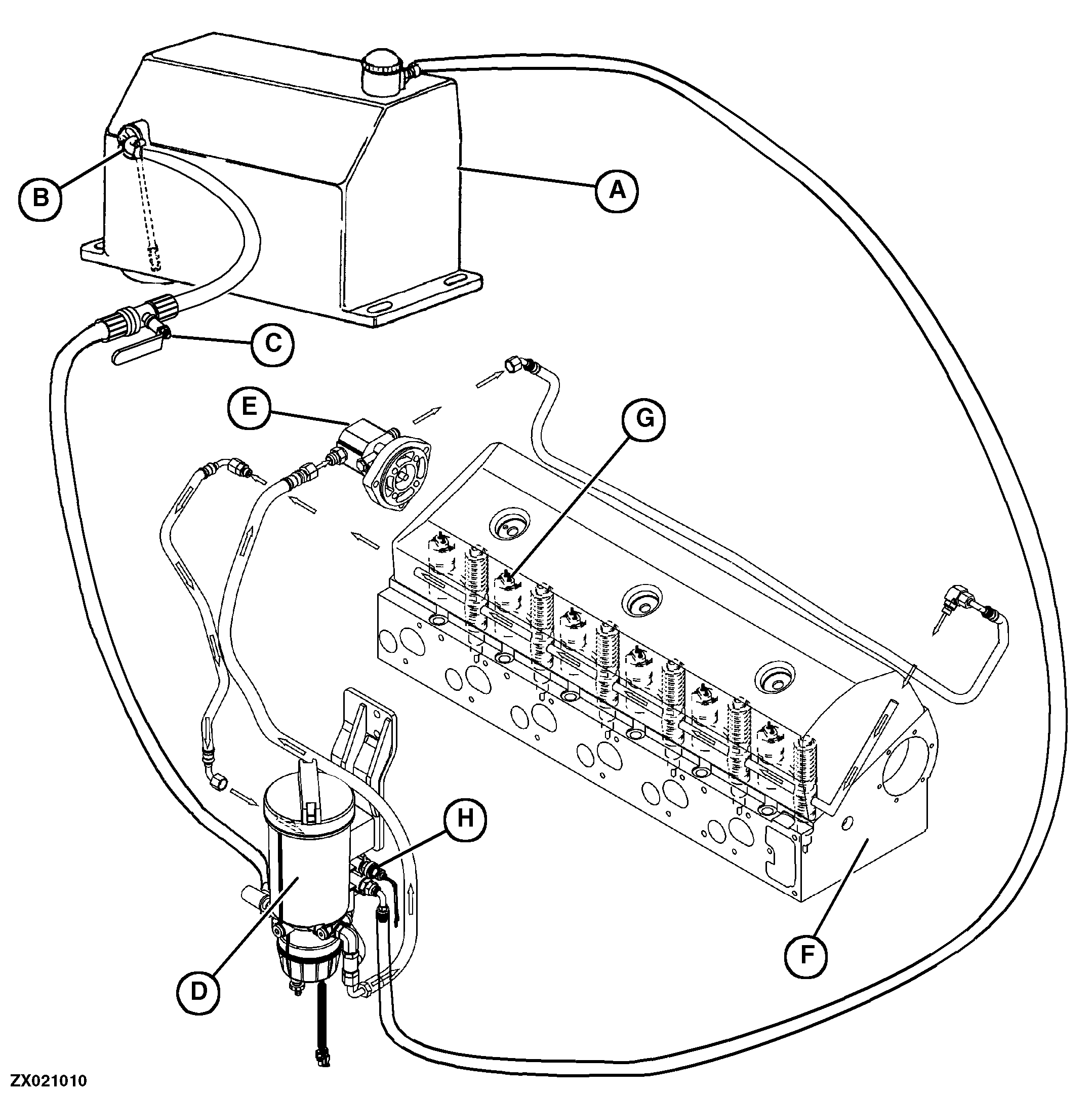

A-Fuel tank
B-Suction line and fuel gauge sending unit

C-Shut-off valve
D-Fuel filter with water trap
E-Mechanical fuel transfer pump

F-Cylinder head
G-Fuel injection nozzle

H-Filter screen

POWERTECH is a trademark of Deere & Company.

AG,ZX08788,633 -19-25APR00-1/1
