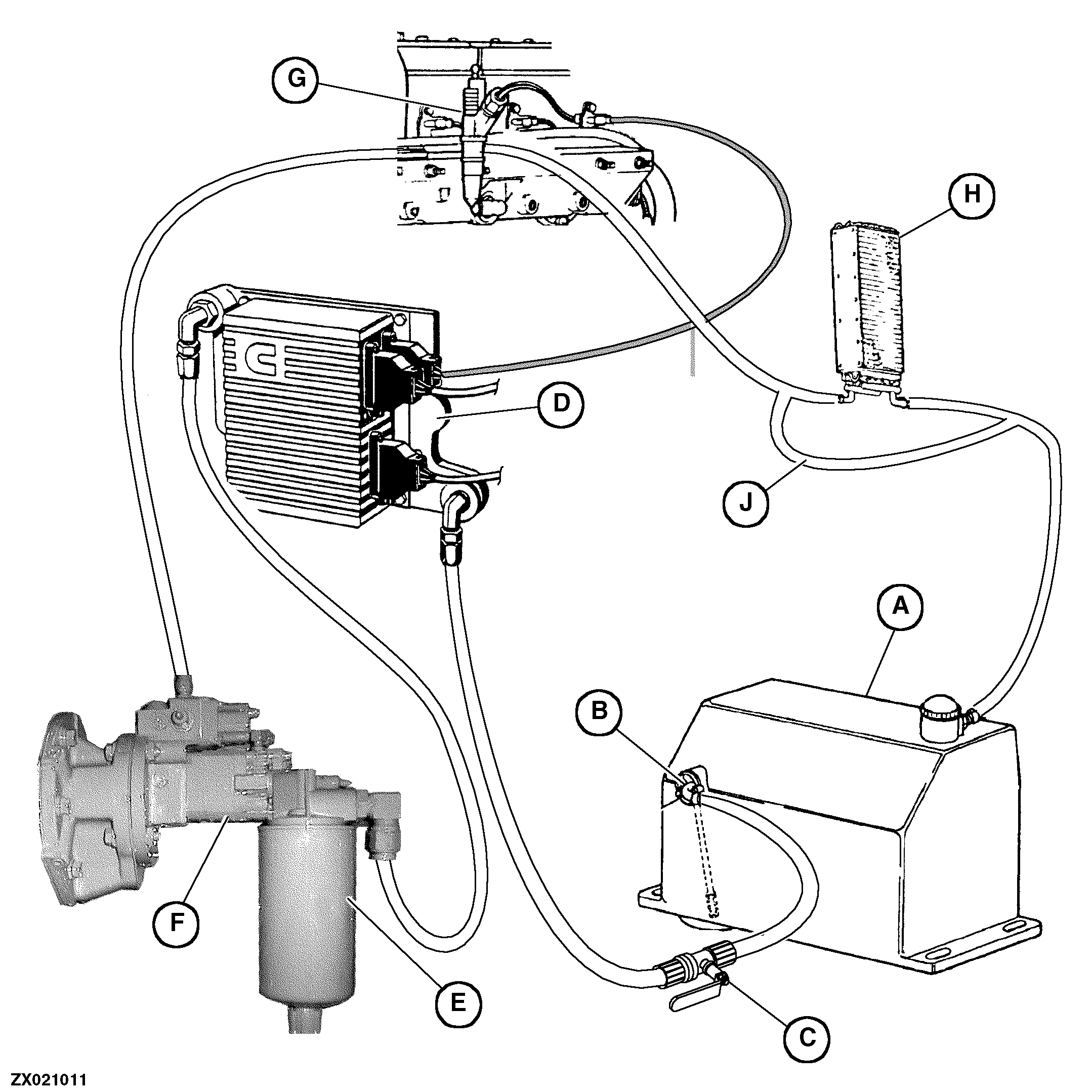

A-Fuel tank
B-Suction line and fuel gauge sending unit

C-Shut-off valve
D-Cooling plate
E-Fuel filter with integrated water trap

F-Gear-type fuel pump
G-Fuel injection pump
H-Fuel cooler

J-Hose connection between fuel cooler and fuel tank

AG,ZX08788,634 -19-25APR00-1/1
