Quick Couplers for Kernel Processor and Harvesting Unit

IMPORTANT: When disconnecting lines, seal all quick-coupler receptacles immediately with the caps provided; this prevents dirt from penetrating the system.

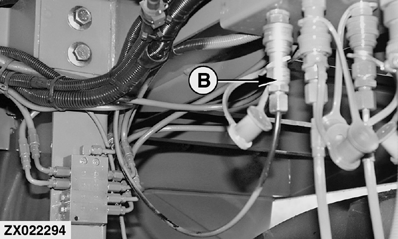

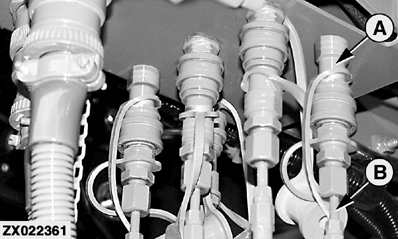

If the kernel processor is not used, be sure to connect return line (B) to kernel processor inlet line (A). Plug quick coupler (C).

A-Kernel processor inlet line
B-Kernel processor return line

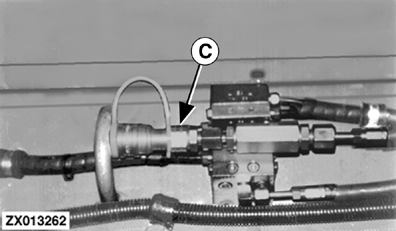

C-Kernel processor quick coupler

OUZXMAY,00002D8 -19-09SEP00-1/2

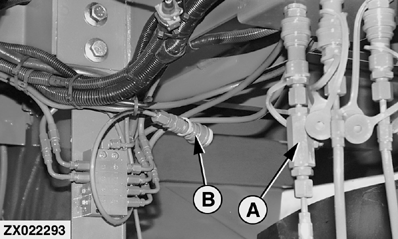

When attaching a harvesting unit without central lubrication system, connect return line (B) to harvesting unit inlet line (A) at the forage harvester.

A-Harvesting unit inlet line
B-Harvesting unit return line

OUZXMAY,00002D8 -19-09SEP00-2/2
