Warming Up Engine

NOTE: On 6950 forage harvester, the engine speed cannot be increased unless the specified oil pressure has been reached (engine runs at slow idle until specified pressure has been reached).

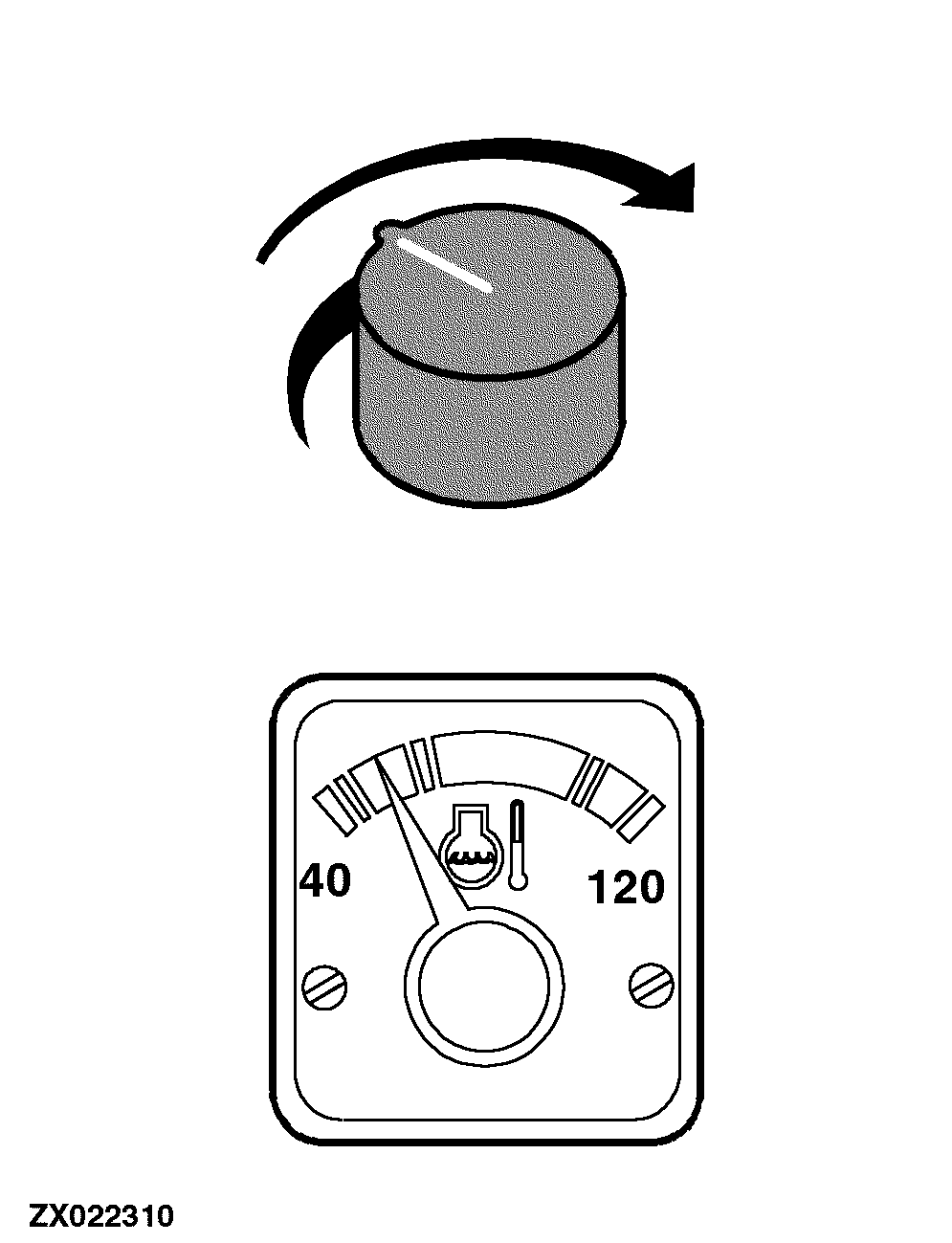

Turn throttle knob to the right until a speed of approx. 1200 rpm has been obtained.

Run a cold engine for approx 1-2 minutes at this speed. At ambient temperatures below freezing, extend this warming up period to 2-4 minutes.

IMPORTANT: Never run engine without load for more than 5 minutes.

Do not increase engine speed to maximum rpm unless needle of coolant temperature gauge is in the yellow-green zone.

OUZXMAY,00002E0 -19-09SEP00-1/1
