Draining Hydraulic Oil

Drain hydraulic system oil after every 500 hours of operation or at the end of the harvesting season (whichever occurs first).

    Only change oil when:

  • Harvesting unit is lowered
  • Reel is lowered
  • Spout is lowered

Drain oil into a suitable container.

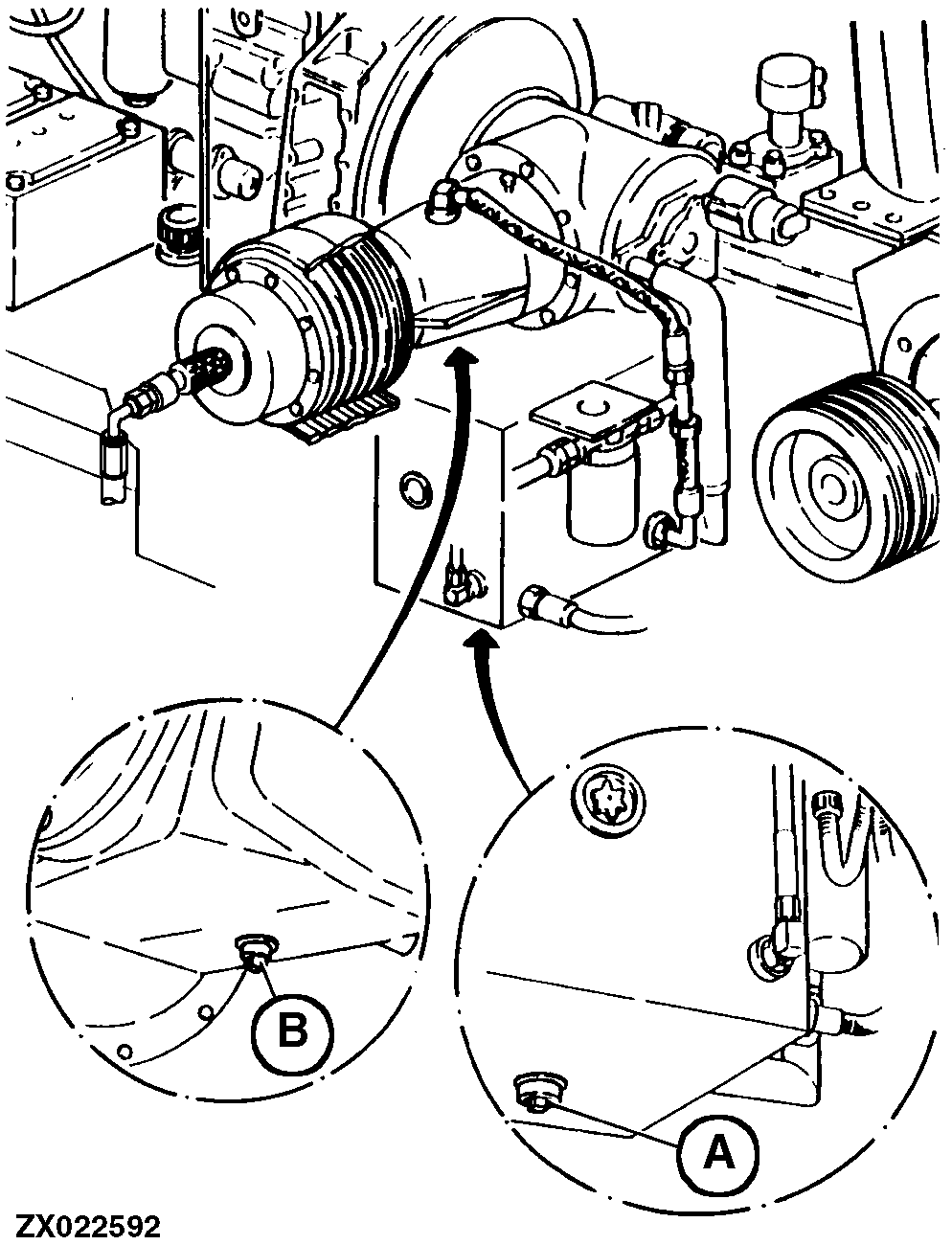

Tighten drain plugs (A) and (B) securely after oil has been drained.


A-Drain plug, hydraulic oil tank
B-Drain plug, bevel gear drive

ZX022592

OUZXMAY,00002E3 -19-16SEP00-1/1
