OMZ92984: 6650, 6750, 6850 and 6950 Self-Propelled Forage Harvesters (504992- ), Block File: OUZXMAY_00002F6_19

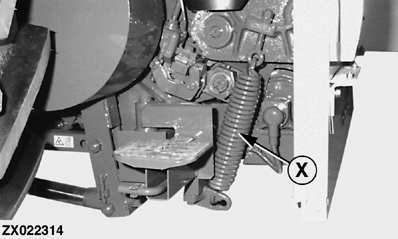

Tighten springs until coils open 1 mm (0.04 in.) max; measure distance (X) at the middle coils of spring.

NOTE: If crop flow is not smooth (slipping) or quality of cut is poor, evenly increase feed roll spring tension.

OUZXMAY,00002F6 -19-19SEP00-1/1
