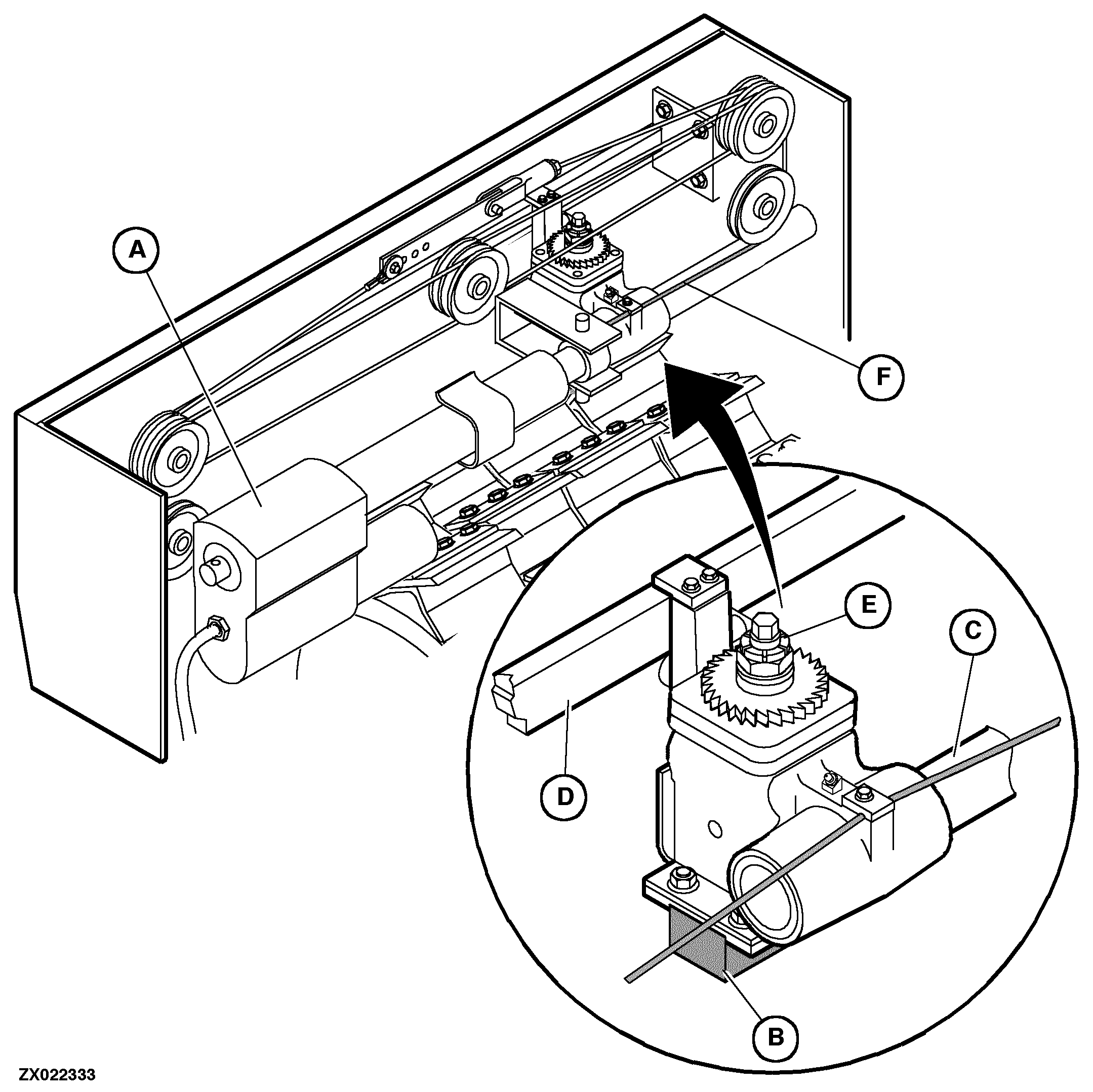

A-Sharpening stone motor (right/left)

B-Sharpening stone
C-Guide shaft

D-Guide rail
E-Sharpening stone lowering ratchet

F-Cable

Motor (A) moves sharpening stone to the left and the right across cutterhead which is turning backwards.

OUZXMAY,0000303 -19-21SEP00-1/2

NOTE: Replacing sharpening stone: See this section.

Aligning knife sharpening device: See this section.

Calibrating the stone park position: See Section "Warning Devices and Monitors".

Verifying sharpening stone lowering: See Section "Warning Devices and Monitors".
