Checking connection

Turn on ignition.

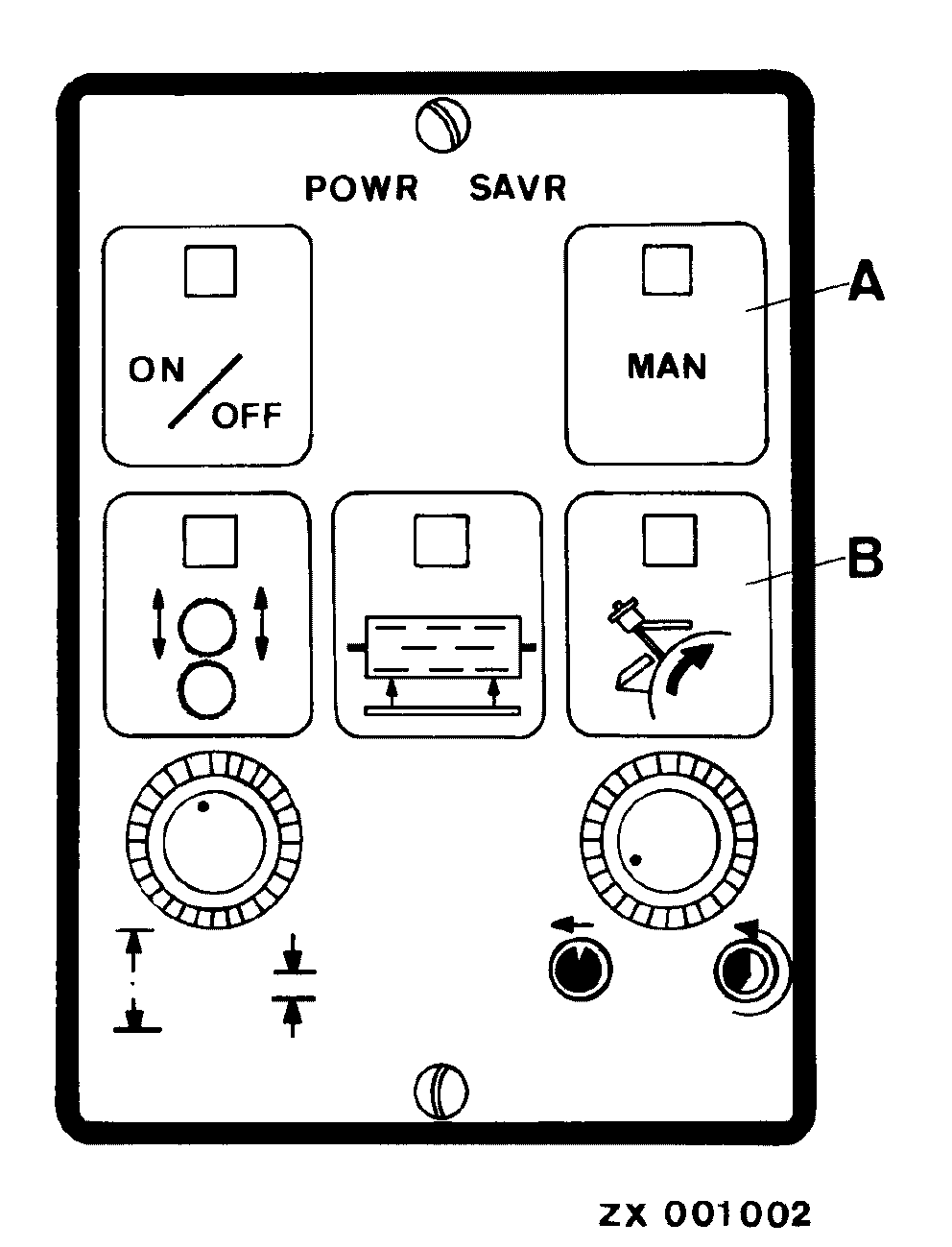

Slightly move out the piston of the linear motor with the manual key (A).

Press the keys for automatic (B) and for manual sharpening (A).

The connection is correct, if the piston of the linear motor retracts (does not move out anymore).

If not, see your John Deere Dealer.
