Completing Conversion

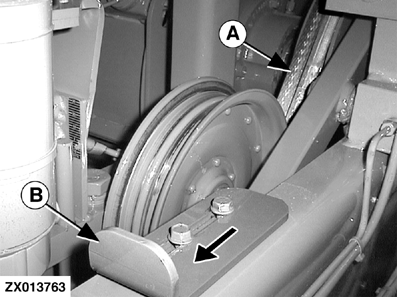

Install drive belt (A).

Pull locking clamp (B) of kernel processor drive to the front.

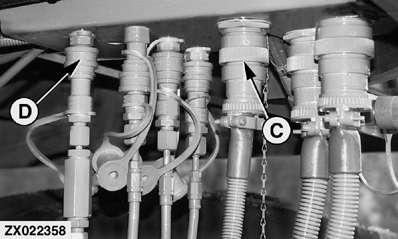

Connect connector (C) (only with electrical adjustment of kernel processor rolls).

Connect inlet line (D) leading to distributor of central lubrication system (depending on equipment).

A-Kernel processor drive belt
B-Locking clamp (kernel processor drive)
C-Connector (kernel processor electrical system)
D-Quick coupler (kernel processor central lubrication)

OUZXMAY,0000315 -19-05OCT00-1/1
