Checking Engine Crankcase Oil Level

To prevent interruption of lubrication oil circulation when the engine is in an inclined position, never allow oil to drop below minimum oil level.

IMPORTANT: Correct level of engine oil is indispensable for long engine service life. Check oil level with forage harvester standing on level ground.

Before removing dipstick, clean surrounding area thoroughly.

Check engine crankcase oil level after every 10 hours of operation.

Oil level should be between upper and lower marks on dipstick.

    John Deere Engines

  • FULL - Maximum
  • ADD - Minimum

    Cummins Engine

    Loosen the tommy screw before pulling out dipstick.

  • "H" (high) - Maximum
  • "L" (low) - Minimum

Tighten tommy screw after oil level check.

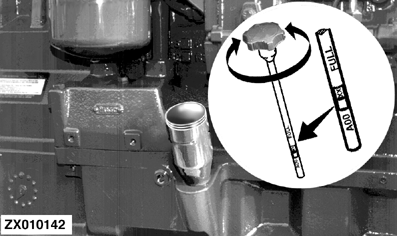

ZX010142

John Deere POWERTECH®[vv471,1] 8.1 L engine

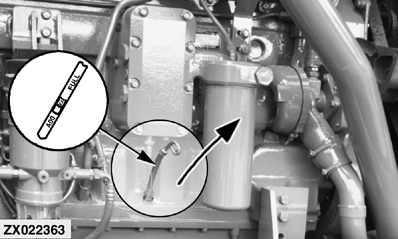

ZX022363

John Deere POWERTECH®[vv471,1] 12.5 L engine

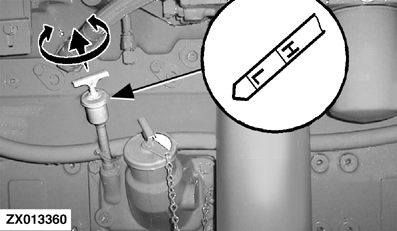

ZX013360

Cummins 14 L engine

OUZXMAY,0000319 -19-05OCT00-1/1
