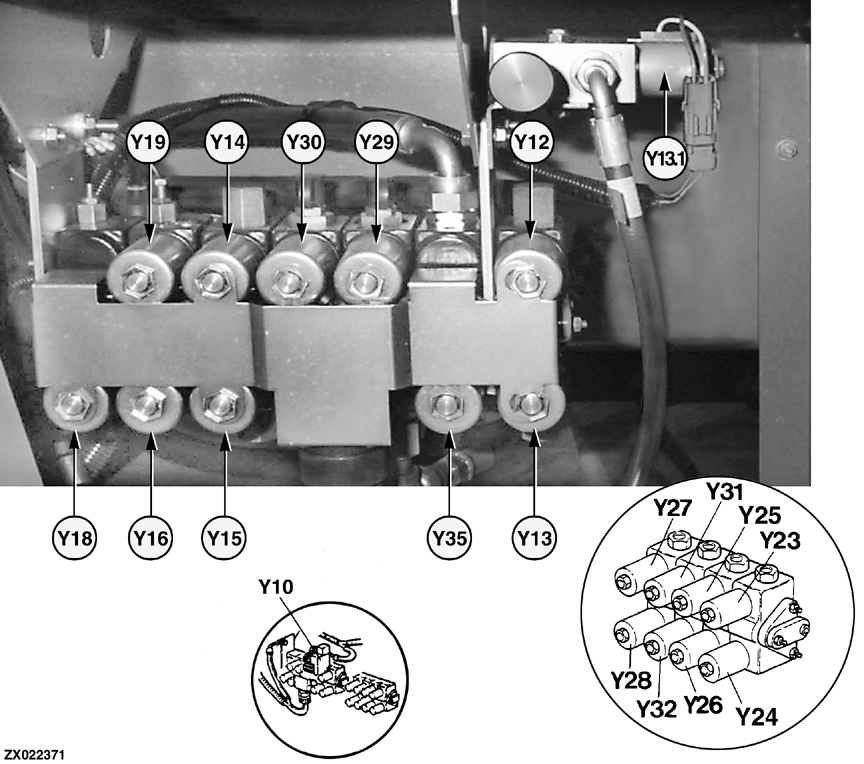

Y10-Four wheel drive solenoid
Y12-Solenoid, turn discharge spout to left
Y13-Solenoid, turn discharge spout to right
Y13.1-Solenoid, turn discharge spout rapidly

Y14-Solenoid, raise discharge spout
Y15-Solenoid, lower discharge spout
Y16-Solenoid, raise harvesting unit
Y18-Solenoid, lower harvesting unit quickly
Y19-Solenoid, lower harvesting unit

Y23-Solenoid, reel horizontal adjustment/RHU folding
Y24-Solenoid, reel horizontal adjustment/RHU folding
Y25-Solenoid, raise reel/raise deflector
Y26-Solenoid, lower reel/lower deflector
Y27-Solenoid, attach trailer

Y28-Solenoid, detach trailer
Y29-Solenoid, 35 L/min. (9.2 gpm)
Y30-Solenoid, 25 L/min. (6.6 gpm)
Y31-Solenoid, tilt trailer
Y32-Solenoid, tilt trailer
Y35-Solenoid, reverse

OUZXMAY,0000322 -19-06OCT00-1/2

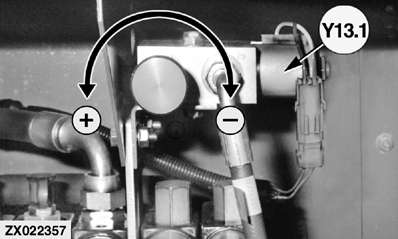

Adjustable Low Speed

The low spout rotation speed can be adjusted:

• To increase the speed (+) - turn knob to the left
• To decrease the speed (-) - turn knob to the right

Fixed High Speed

The high speed is not adjustable (turning the knob has no effect on speed).

OUZXMAY,0000322 -19-06OCT00-2/2
