OMZ92984: 6650, 6750, 6850 and 6950 Self-Propelled Forage Harvesters (504992- ), Block File: OUZXMAY_0000329_19

Accumulator - Discharge Spout

The discharge spout accumulator has a capacity of 0.32 L (0.08 U.S. gal.) and is precharged with nitrogen under a pressure of 8000 kPa (80 bar) (1160 psi).

Specification

Discharge Spout Accumulator -Capacity	0.32 L (0.08 U.S. gal.)
Pressure	8000 kPa (80 bar) (1160 psi)

The accumulator is maintenance-free and cannot be repaired.

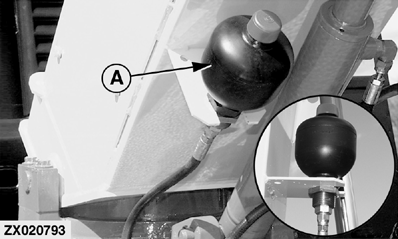

A-Accumulator

OUZXMAY,0000329 -19-06OCT00-1/1
