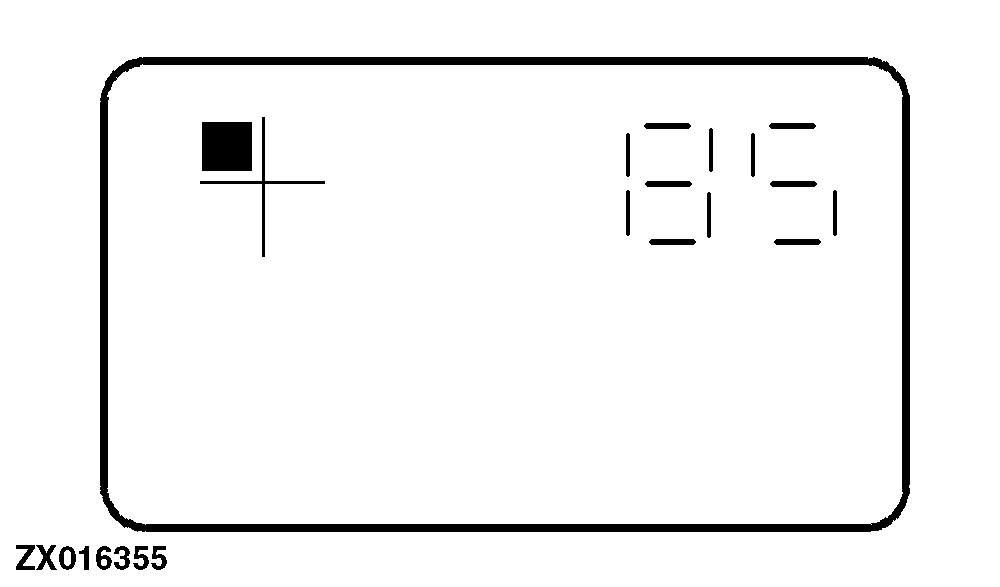

Machine Code

Input Code for mph:

• 95 - 6650, 6750 and 6850 forage harvesters
• 85 - 6950 forage harvester

Input code for km/h:

• 115 - 6650, 6750 and 6850 forage harvesters
• 105 - 6950 forage harvester

NOTE: Depending on machine code input, area counter display is as follows:

• 95/85-Acres, ft, miles are displayed

• 115/105-Hectares, meters, kilometers are displayed

Also refer to "Area Counter" in this Section.

• 95/85-Percentage of roll clearance is displayed

• 115/105-Millimeters are displayed

Also refer to "Adjusting Kernel Processor Roll Clearance On INFO-TRAK Monitor" in this Section.

OUZXMAY,0000332 -19-28OCT00-1/1
