Rear Weights for Forage Harvester With Harvesting Unit Installed

IMPORTANT: When driving on public roads without harvesting unit installed, a maximum of 8 suitcase weights may remain attached with steering tires 14.9-24 8PR and a maximum of 12 suitcase weights with steering tires 16.5L-16.1 8PR (maximum ground speed 25 km/h; 15.5 mph).

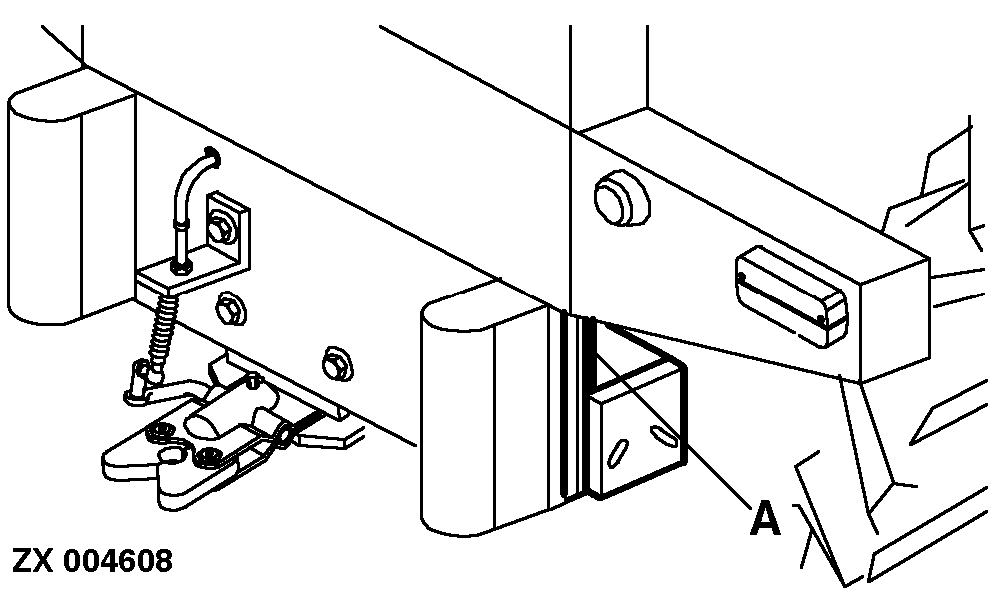

A-Weight plates, 50 kg (110 lb) each

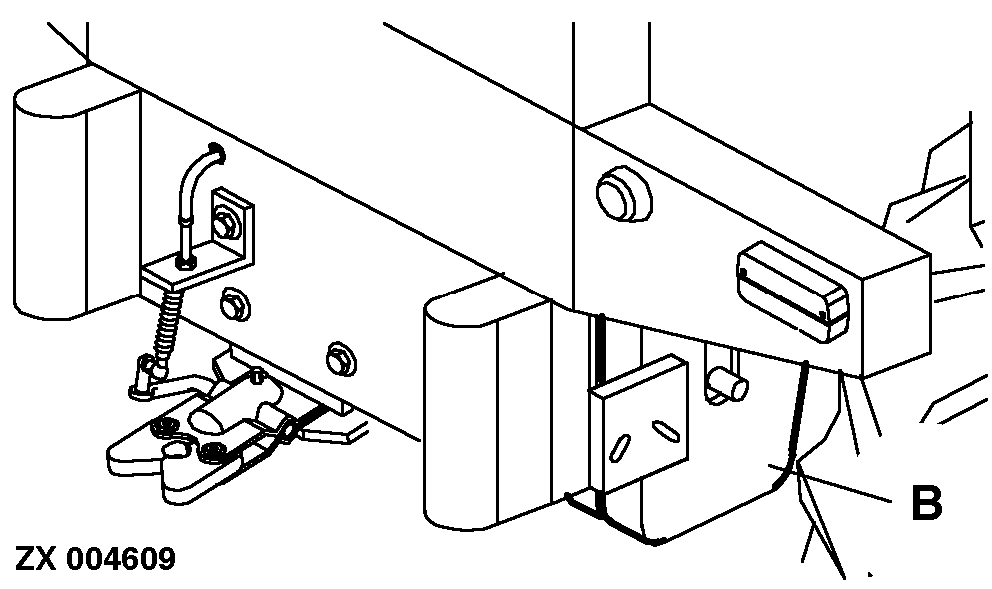

B-Suitcase weights, 45 kg (100 lb) each

OUZXMAY,0000336 -19-31OCT00-1/1
