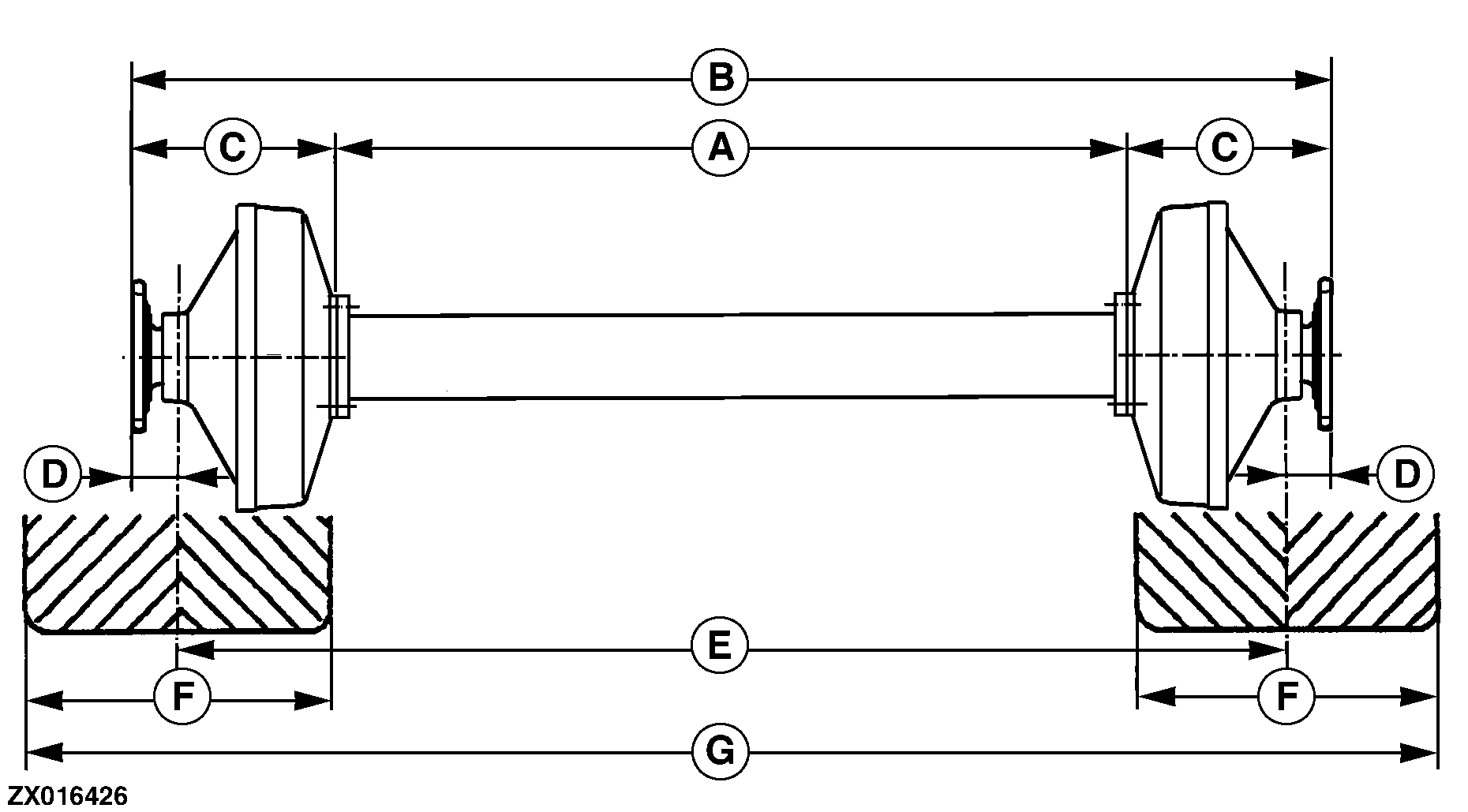

Overall Width and Track Width
|
|
|
|
|
| Tires | Rims | Press-in depth | Overall width | Track width |
|---|---|---|---|---|
| 20.8 - 38 | DW18X38 | +98 mm (+ 3.9 in.) | 2938 mm (115.7 in.) | 2370 mm (93.3 in.) |
| 24.5 - 38 | DW20X32 | +68 mm (+ 2.7 in.) | 3060 mm (120.5 in.) | 2408 mm (94.8 in.) |
| 30.5 L - 32 | DW25X32 | +13 mm (+ 0.5 in.) | 3328 mm (131 in.) | 2558 mm (100.7 in.) |
| 650/75 R32 | DW20X32 | +98 mm (+ 3.9 in.) | 3000 mm (118.1 in.) | 2388 mm (94 in.) |
| 800/65 R32 | DW25X32 | +13 mm (+ 0.5 in.) | 3290 mm (129.5 in.) | 2558 mm (100.7 in.) |
|
NOTE: Dimensions apply ex factory and without broader track. |
