Number and Arrangement of Cutterhead Knives

IMPORTANT: To avoid damage by cutterhead imbalance, make sure that number and arrangement of knives are correct.

IMPORTANT: Removing half a set of knives in combination with:

  • Third or fourth length-of-cut setting

  • Corn crops and

  • The use of a kernel processor

Can cause:

  • Increased noise levels

  • Increased risk of plugging of the kernel processor

  • Premature wear of kernel processor components


X-Row arrangement
Y-Number of knives per row
Z-Total number of knives

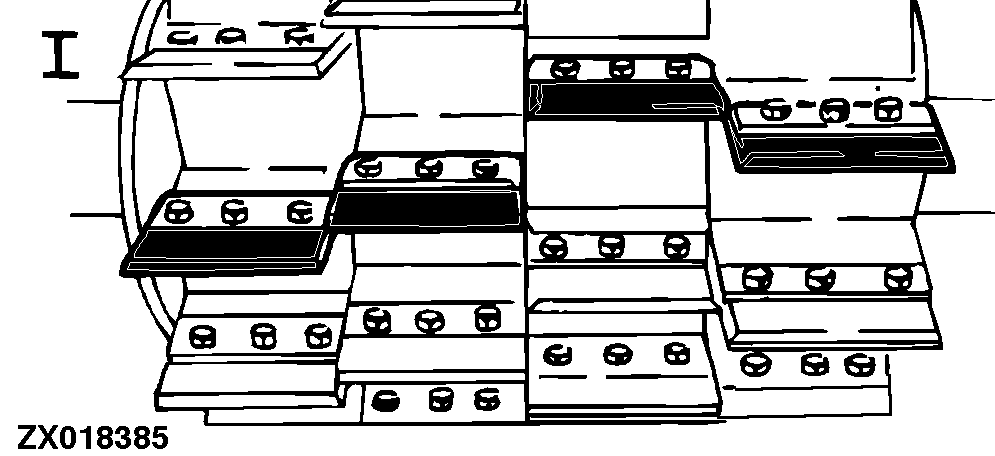

I-Arrangement of one knife row

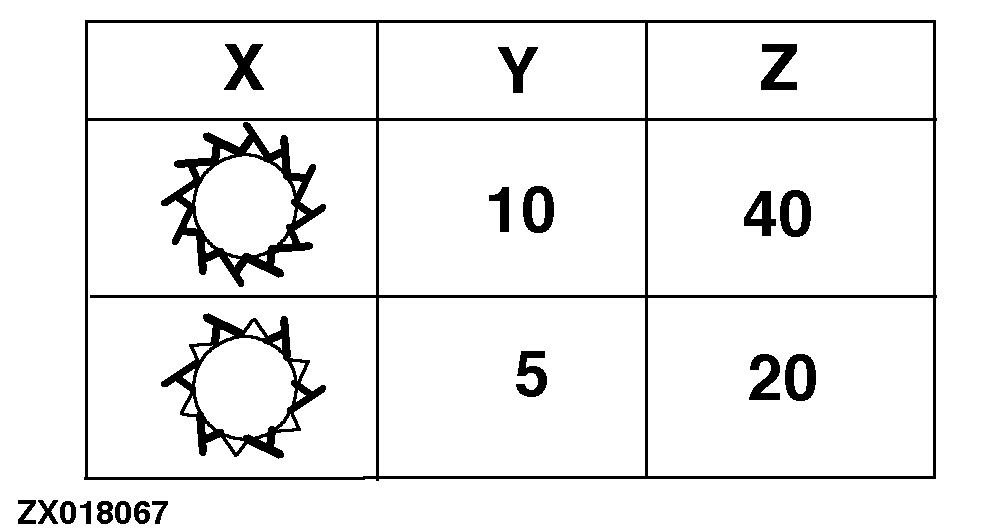

ZX018067

40-knife cutterhead

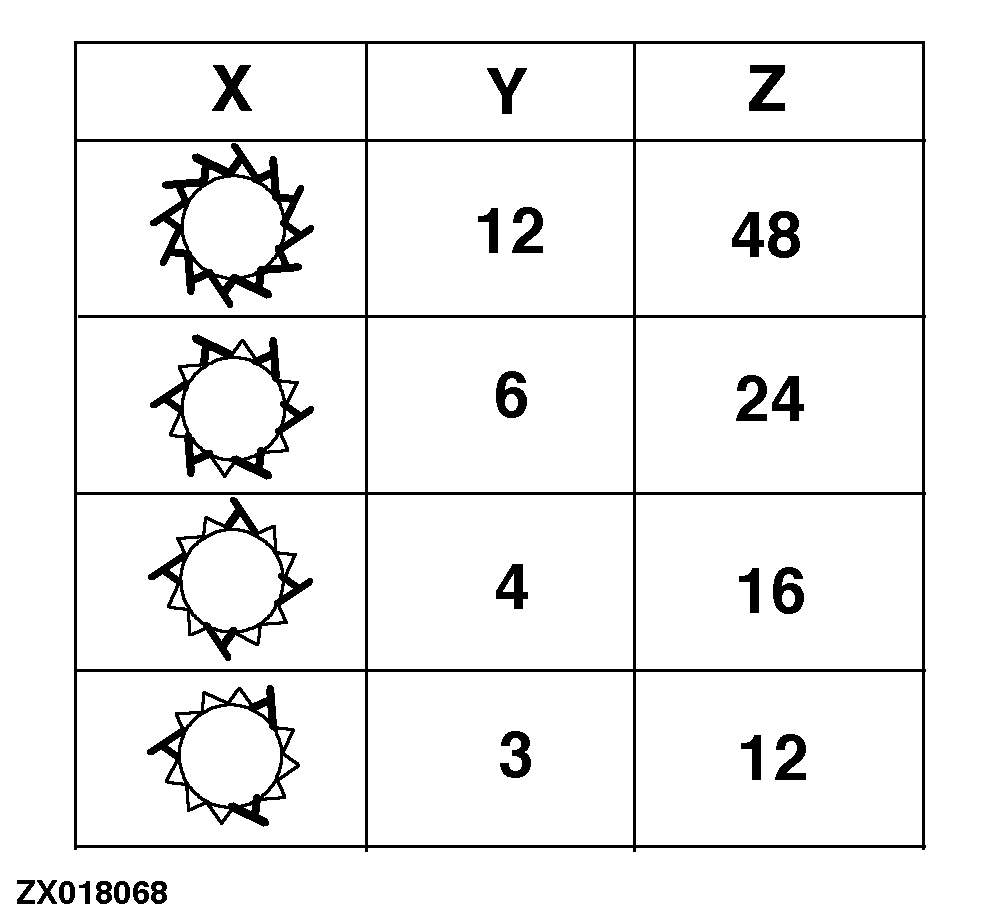

ZX018068

48-knife cutterhead

ZX018385
