Greasing Points Not Lubricated Centrally
On forage harvesters with central lubrication, the greasing points listed below must be lubricated with a grease gun, as they are moving or rotating points, or points that need to be greased because of the equipment fit.

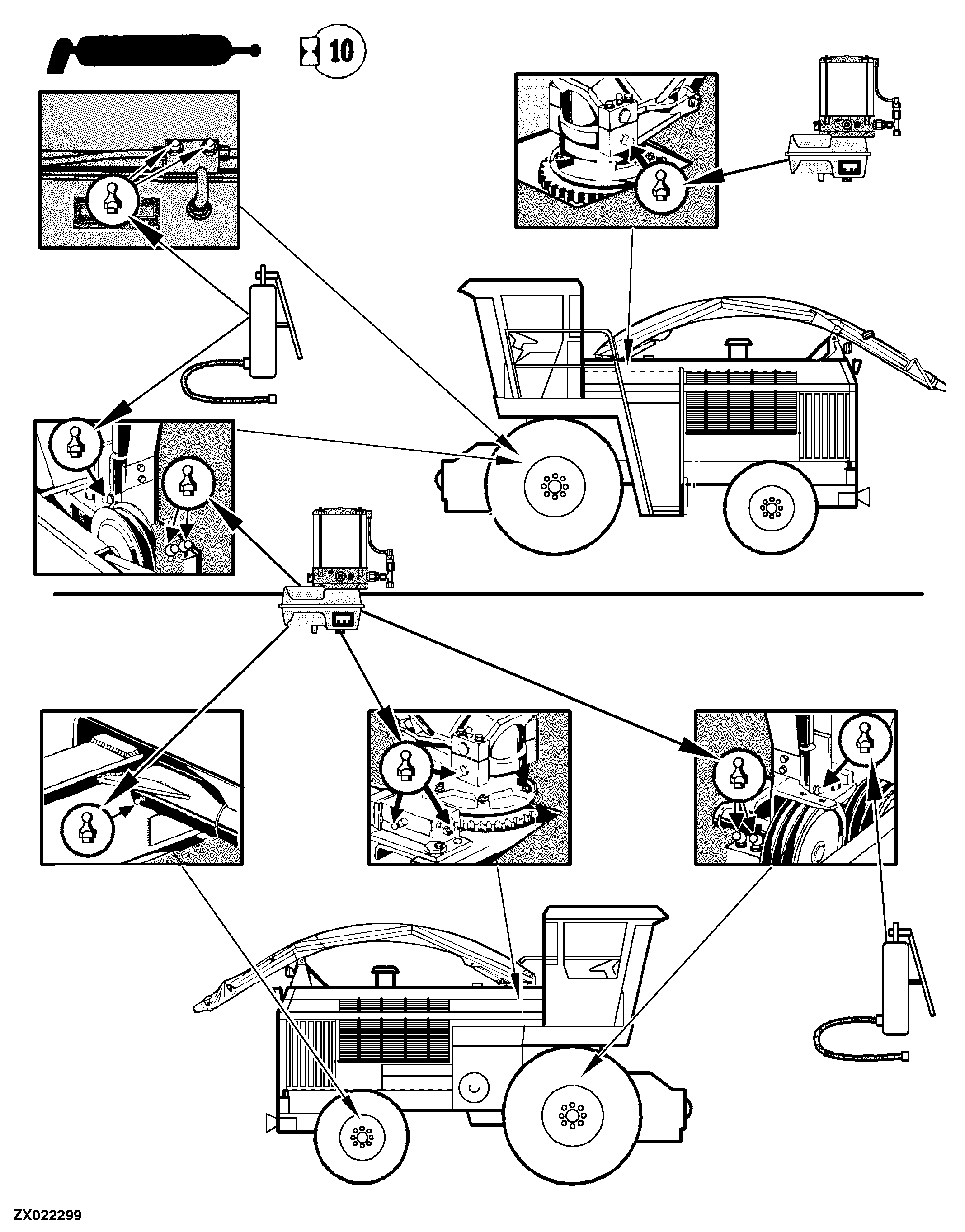

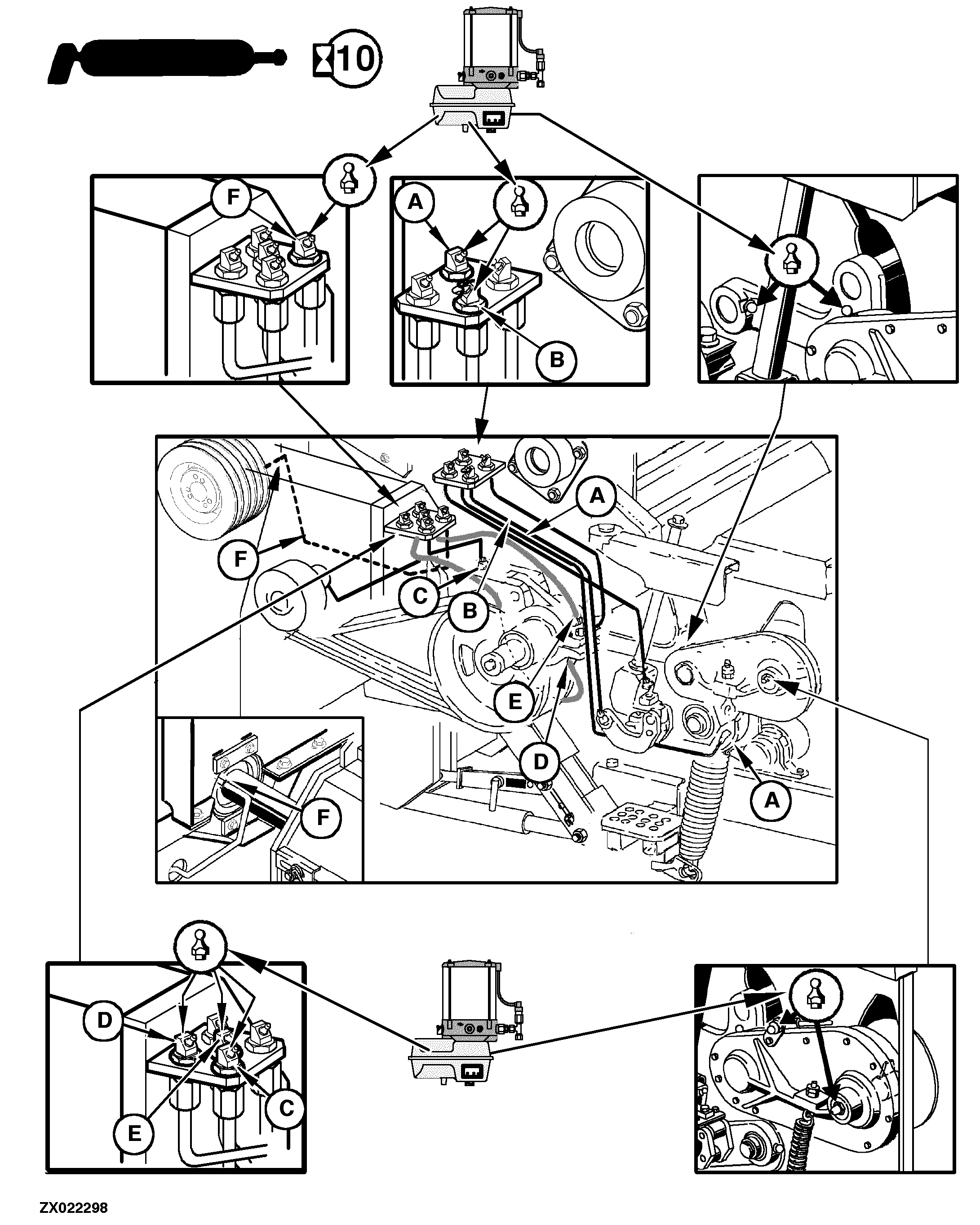

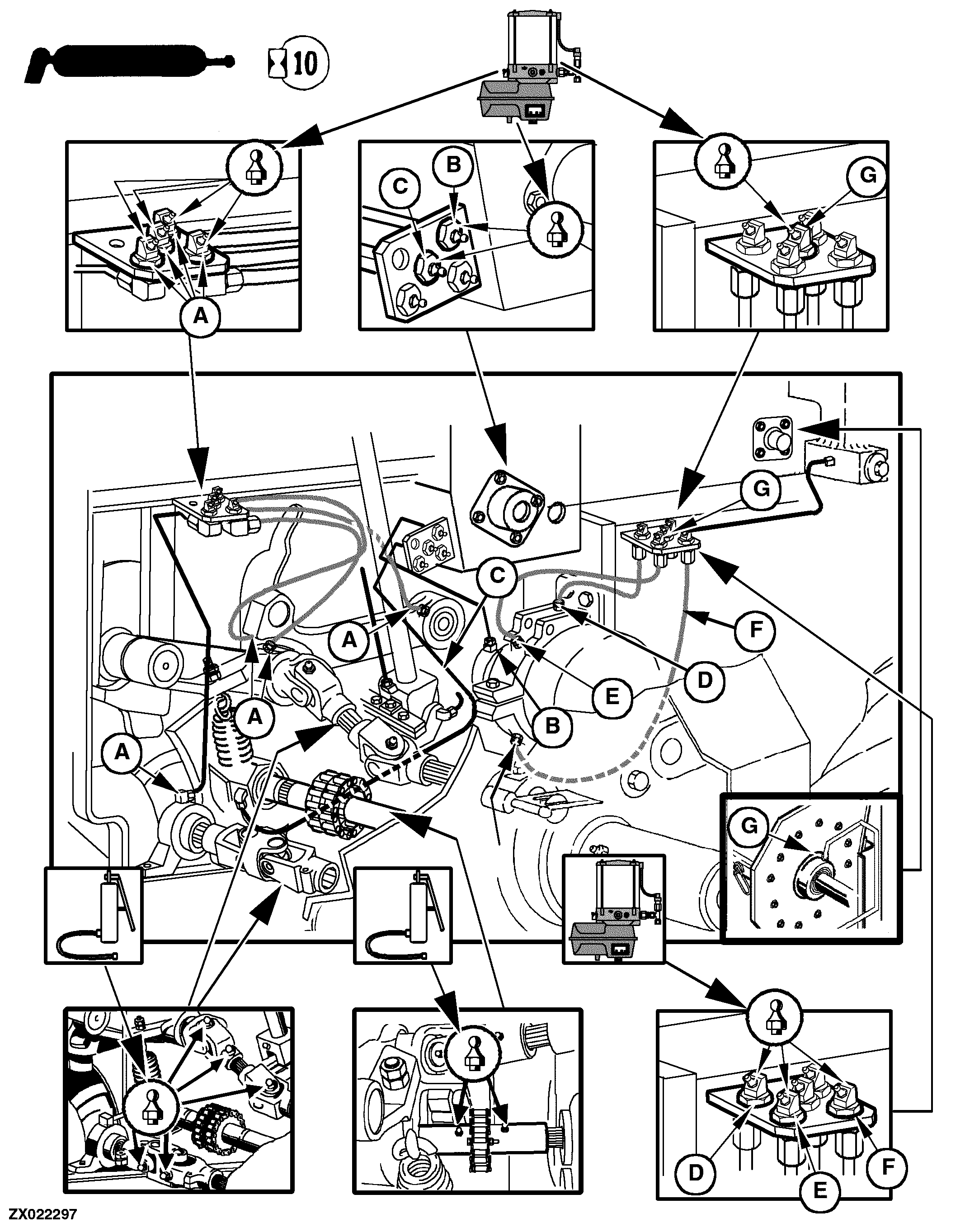

10-Hour Interval
-
2 points at u.j. shaft of front lower feed roll
-
3 points at u.j. shaft of front upper feed roll
-
2 points at drive shaft of rear lower roll (smooth roll)
-
2 points at spindles for adjusting kernel processor roll clearance (if equipped)
-
2 points on power chute (if equipped)

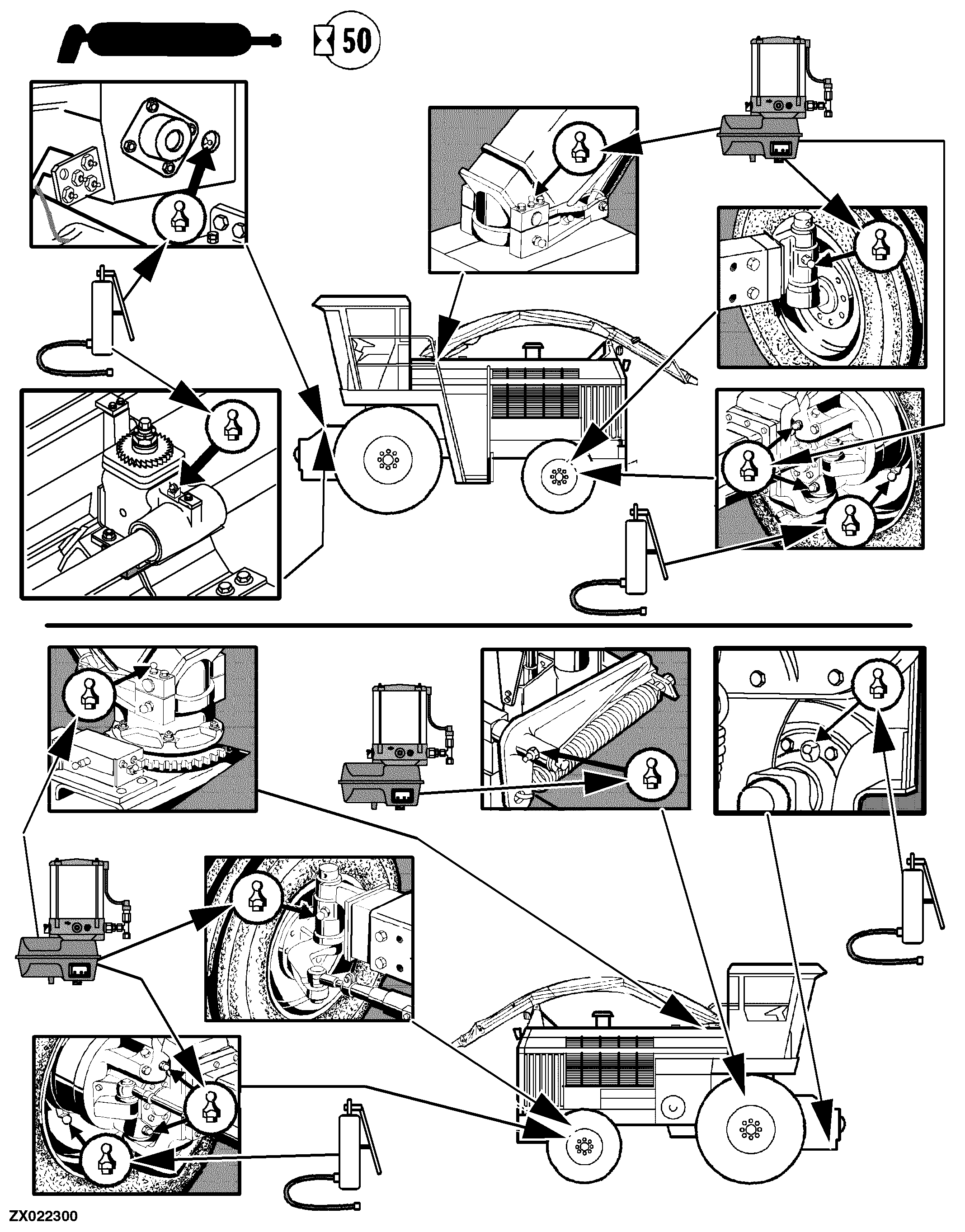

50-Hour Interval
-
1 point on sharpening stone guide rod
-
2 points on rear-wheel drive motors (if equipped)
-
1 point on r.h. end of front lower feed roll

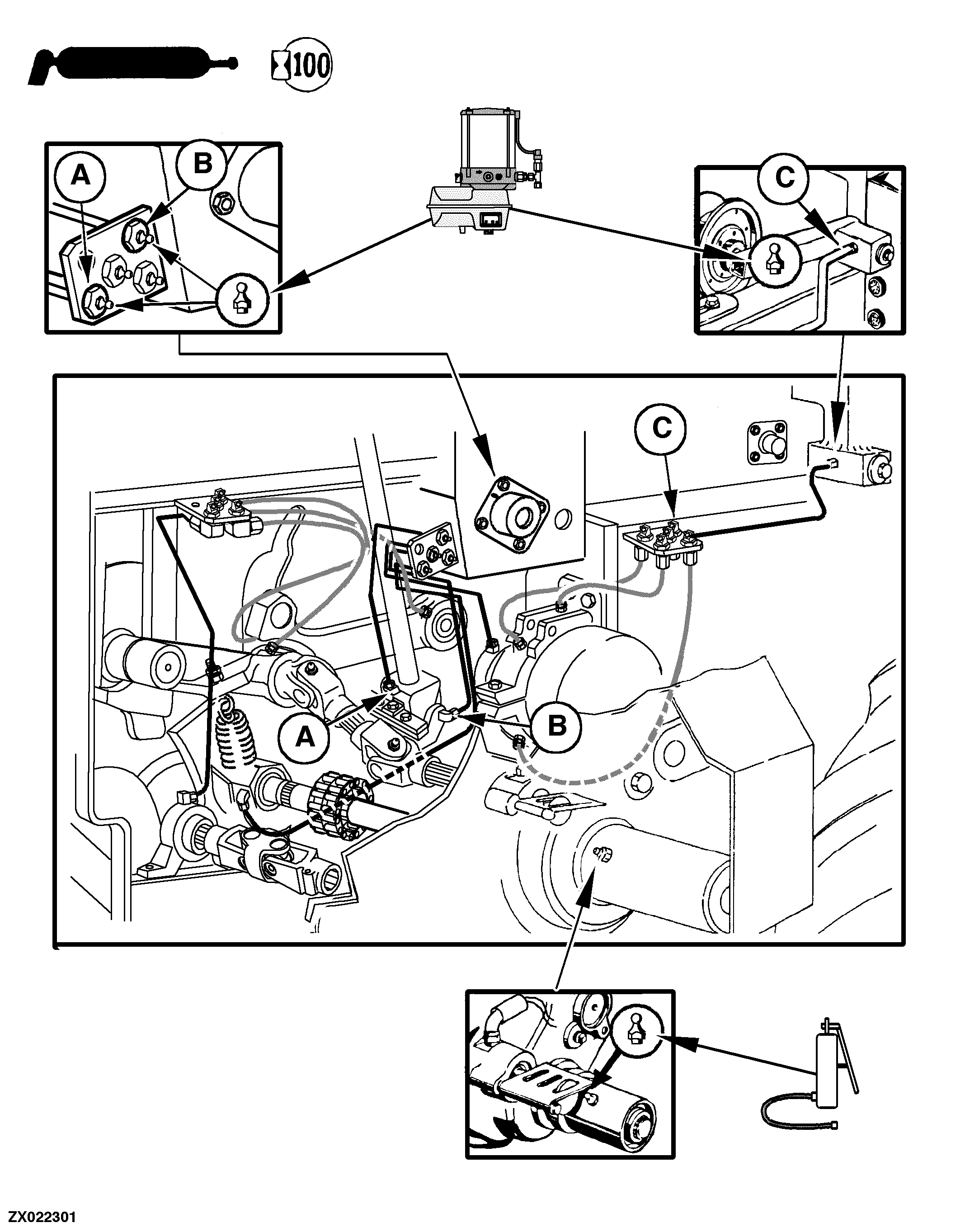

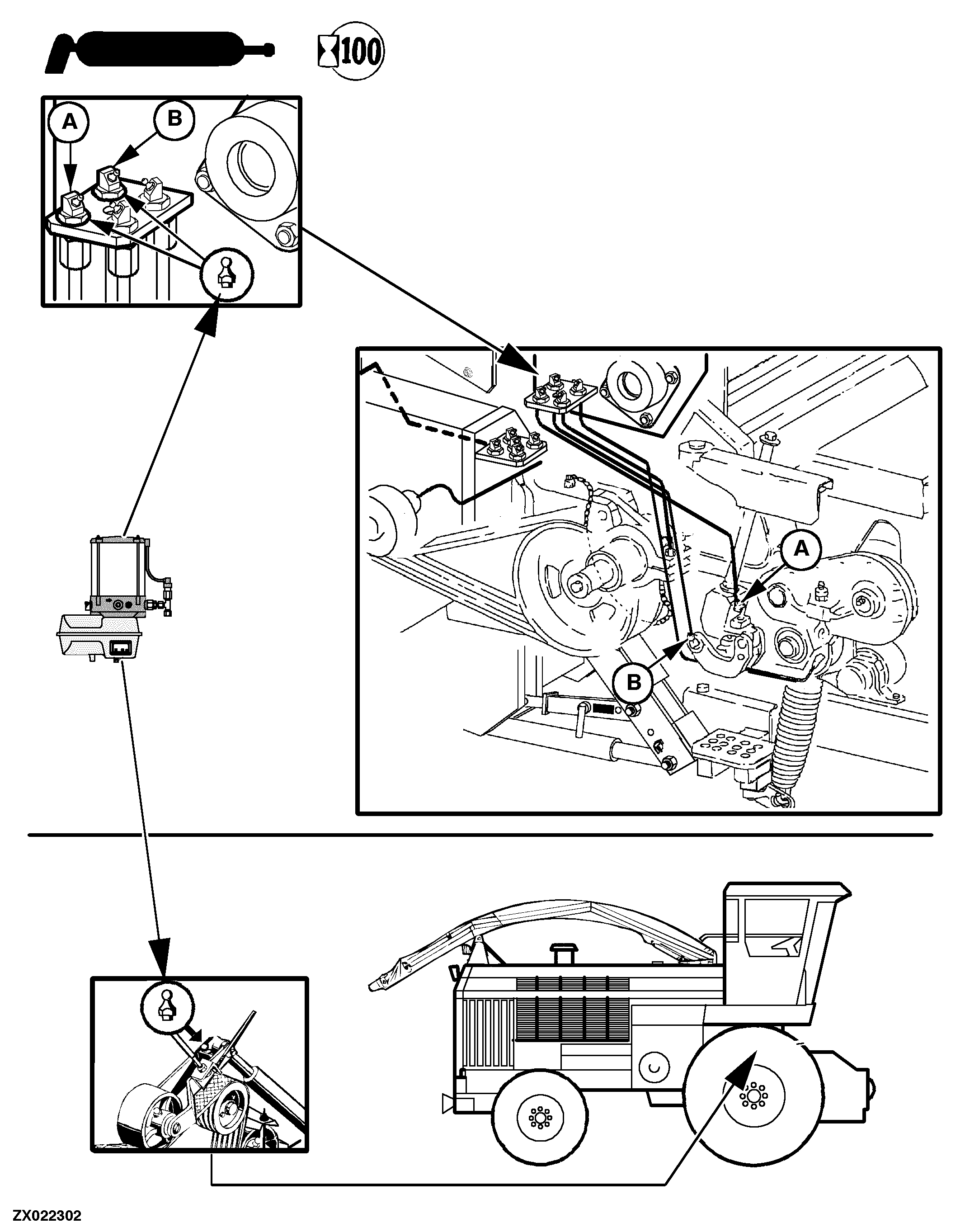

100-Hour Interval
-
1 point on feed roll slip clutch

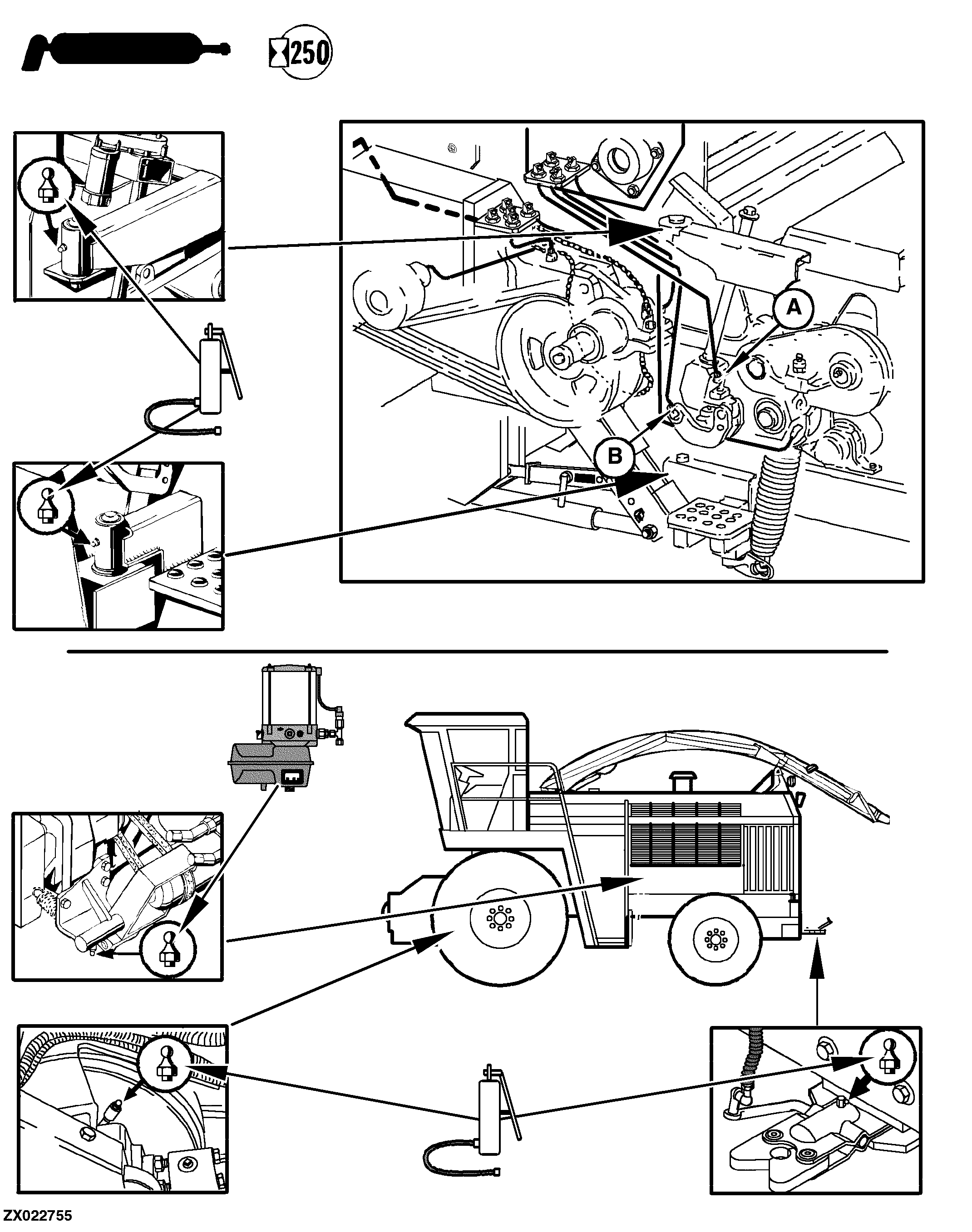

250-Hour Interval
-
1 point on input shaft, length-of-cut transmission
-
2 points, attaching points of feed roll housing
-
1 point on trailer hitch (if equipped)

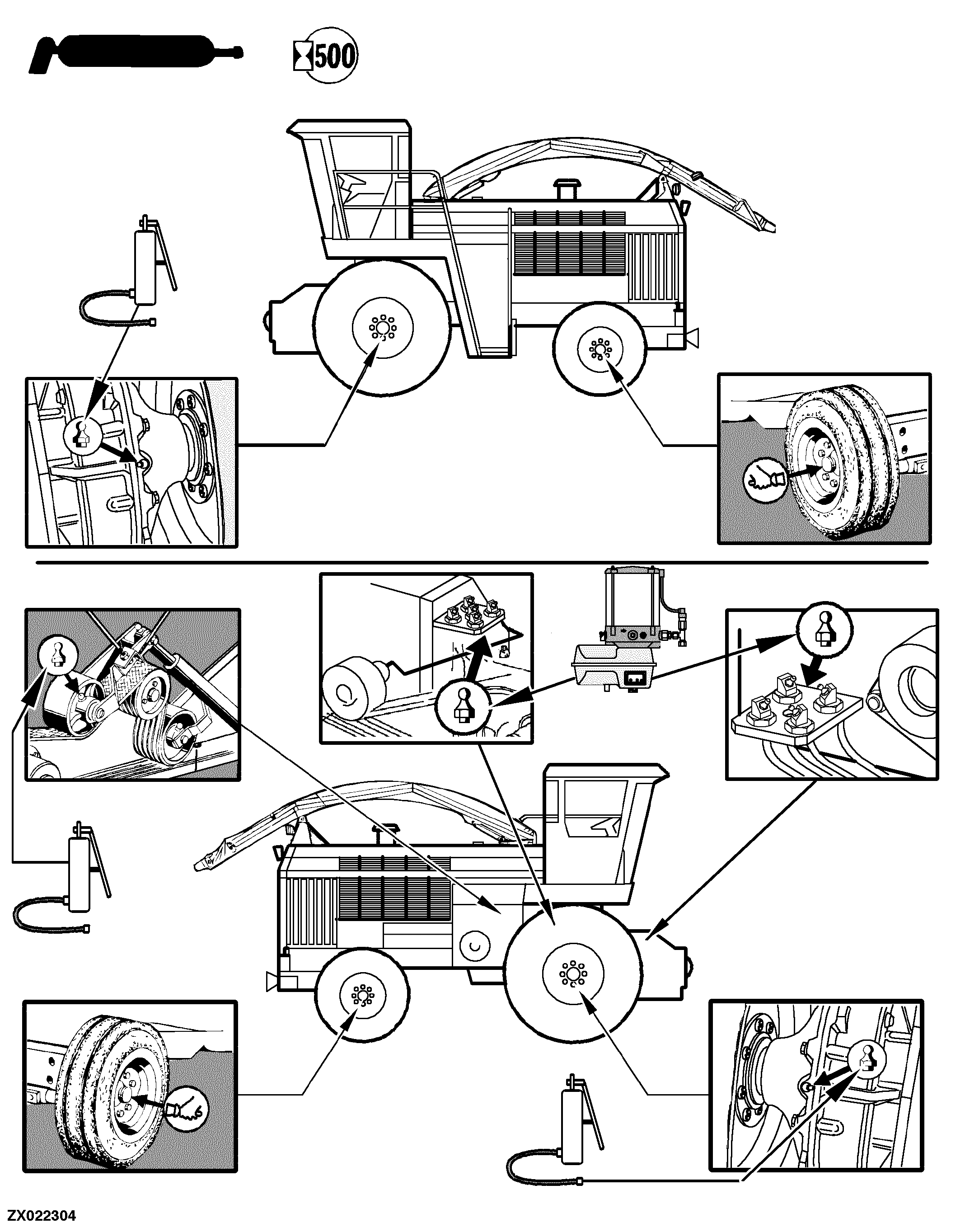

500-Hour Interval
-
1 point on main drive tensioning roll
-
2 points on final drives
|
|
|
|
