Adjusting Area Counter Switch

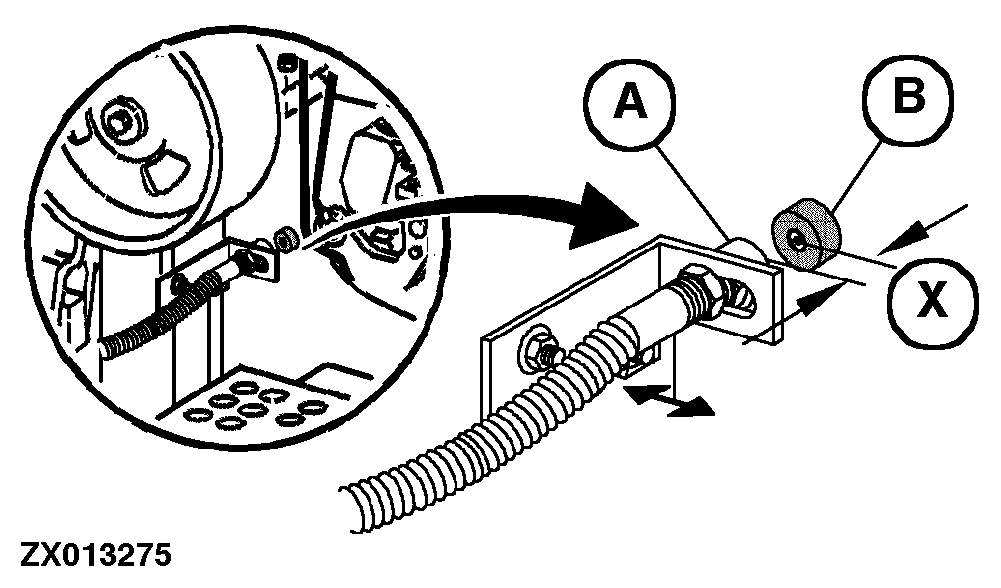

Depending on tire size and ground conditions, move sending unit (A) of area counter in slotted hole until area counter is switched on in working position, i.e. sending unit (A) is aligned with magnet (B) when header is in working position.

Adjust distance between sending unit (A) and magnet (B). Correct dimension is X = 10+/-2 mm (0.4+/-0.08 in.).

A-Sending unit
B-Magnet
X-Dimension 10 +/- 2 mm (0.4 +/- 0.08 in.)

ZXOMSPFH009865 -19-01NOV97-1/1
