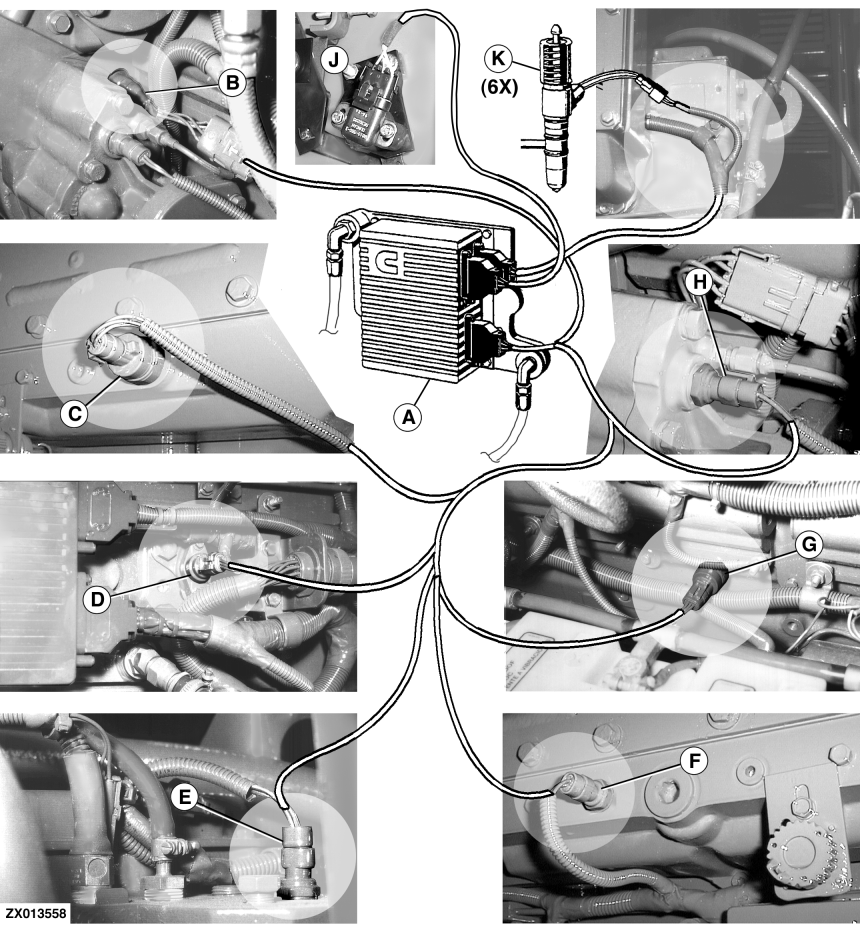

A-Electronic control unit (ECU)
B-Sending unit, crankshaft position
C-Sending unit, charge air pressure
|
D-Sending unit, ambient air pressure
E-Sending unit, coolant temperature
F-Sending unit, charge air temperature
|
G-Sending unit, engine oil pressure
H-Sending unit, engine oil temperature
|
J-Potentiometer, engine speed
K-Injection nozzle control valve (6 used)
|
