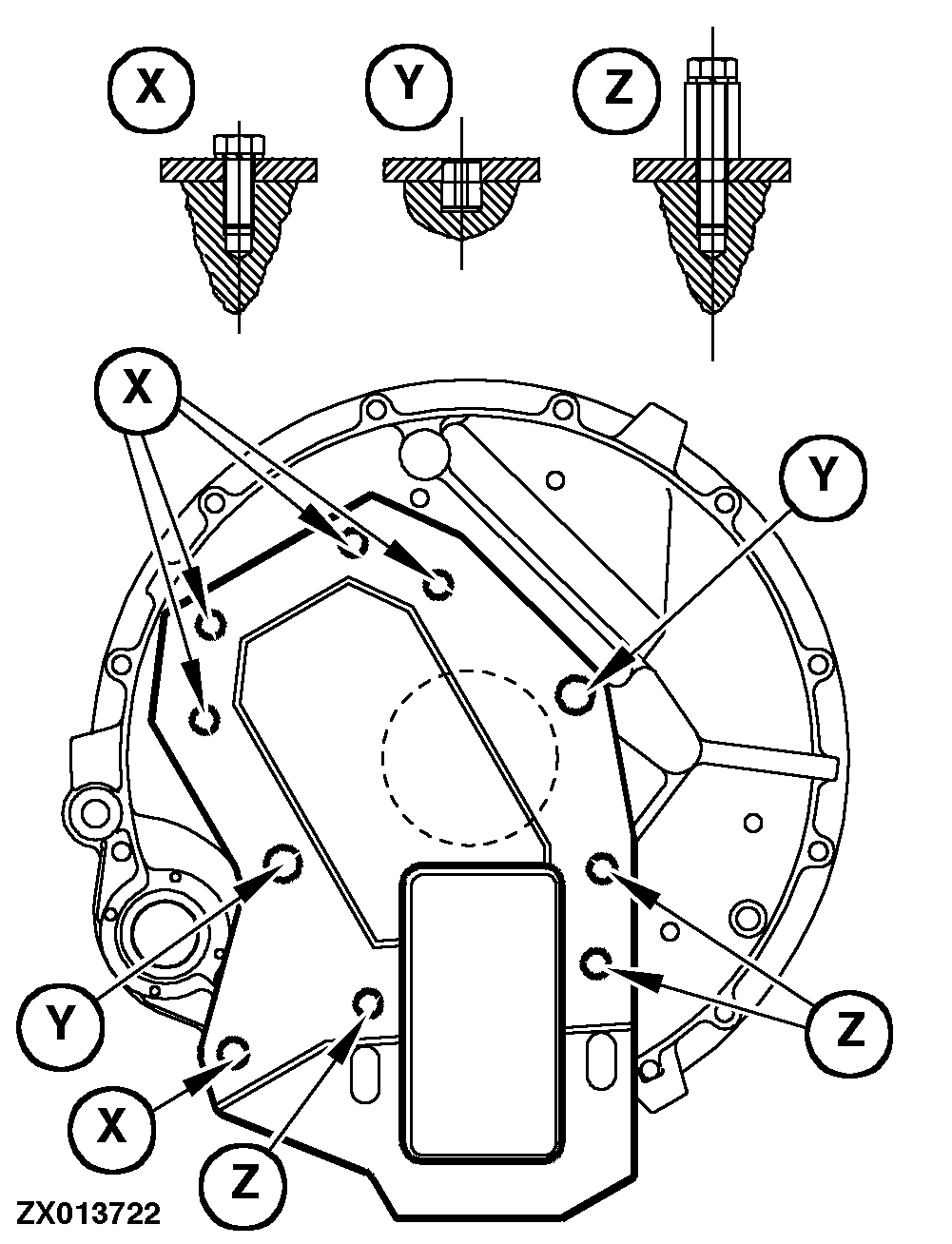

Final Drive Attaching Screws

During the first 50 hours of operation, tighten attaching screws at least every 10 hours of operation as follows:

  • X - 435 N·m (321 lb-ft)
  • Y - Centering pin
  • Z - 600 N·m (443 lb-ft)
ZX013722

ZXOMSPFH010300 -19-02NOV97-1/1
