Dimensions

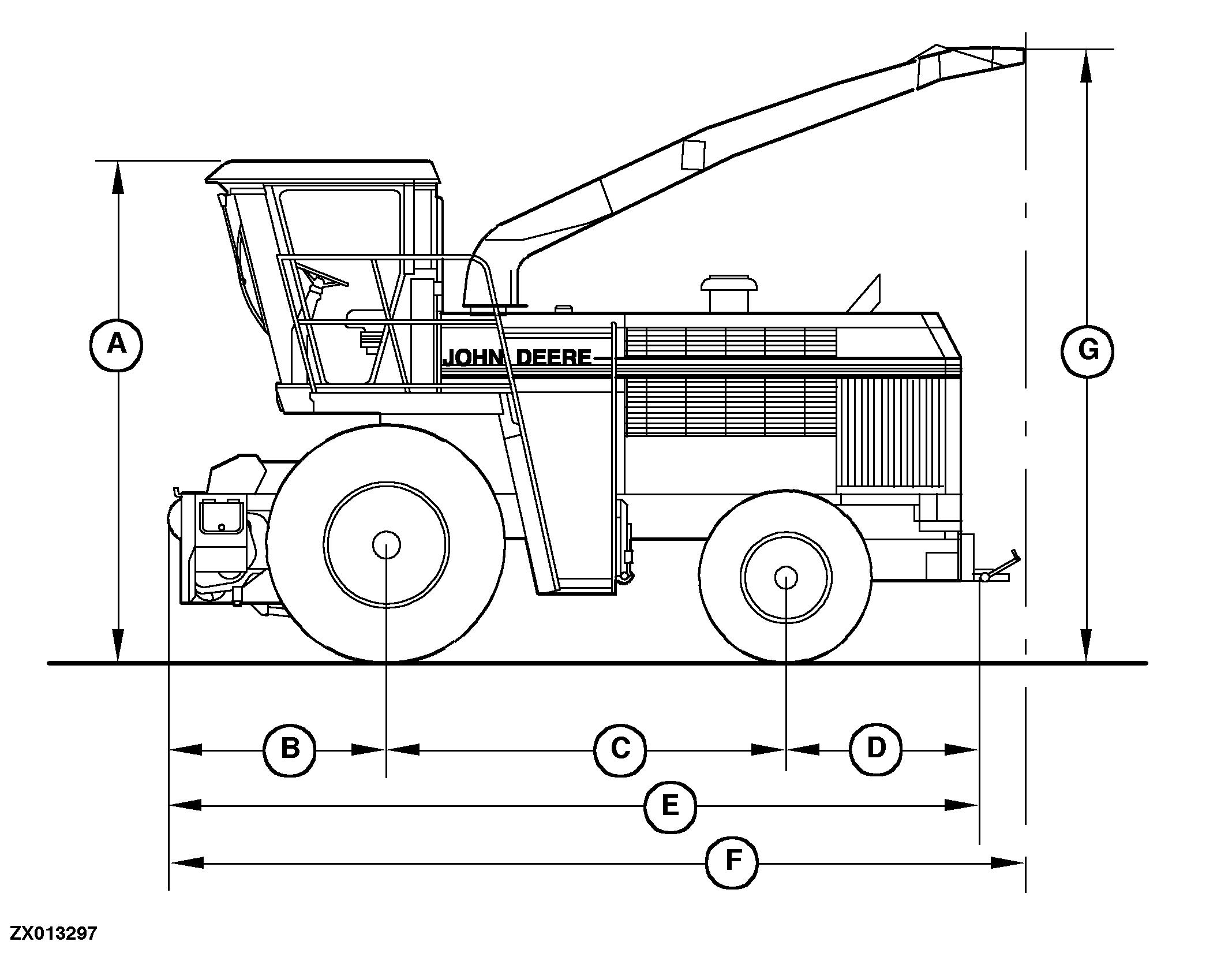

ZX013297


A-3.60-3.66 m (11.81-12.01 ft)1
B-1.61 m (5.28 ft)
C-2.95 m (9.68 ft) (without rear wheel drive), 2.93 m (9.61 ft) (with rear wheel drive)


D-1.39 m (4.56 ft) (without rear wheel drive), 1.41 m (4.63 ft) (with rear wheel drive)
E-5.95 m (19.52 ft)


F-without spout extension 5.79 m (18.99 ft); with spout extension 6.57 m (21.55 ft)


G-without spout extension 4.90 m (16.08 ft) max., 3.60 m (11.81 ft) min.; with spout extension 5.05 m (16.57 ft) max., 3.60 m (11.81 ft) min.

1 This dimension depends on tire size.

ZXOMUSFH010131 -19-01NOV97-1/4

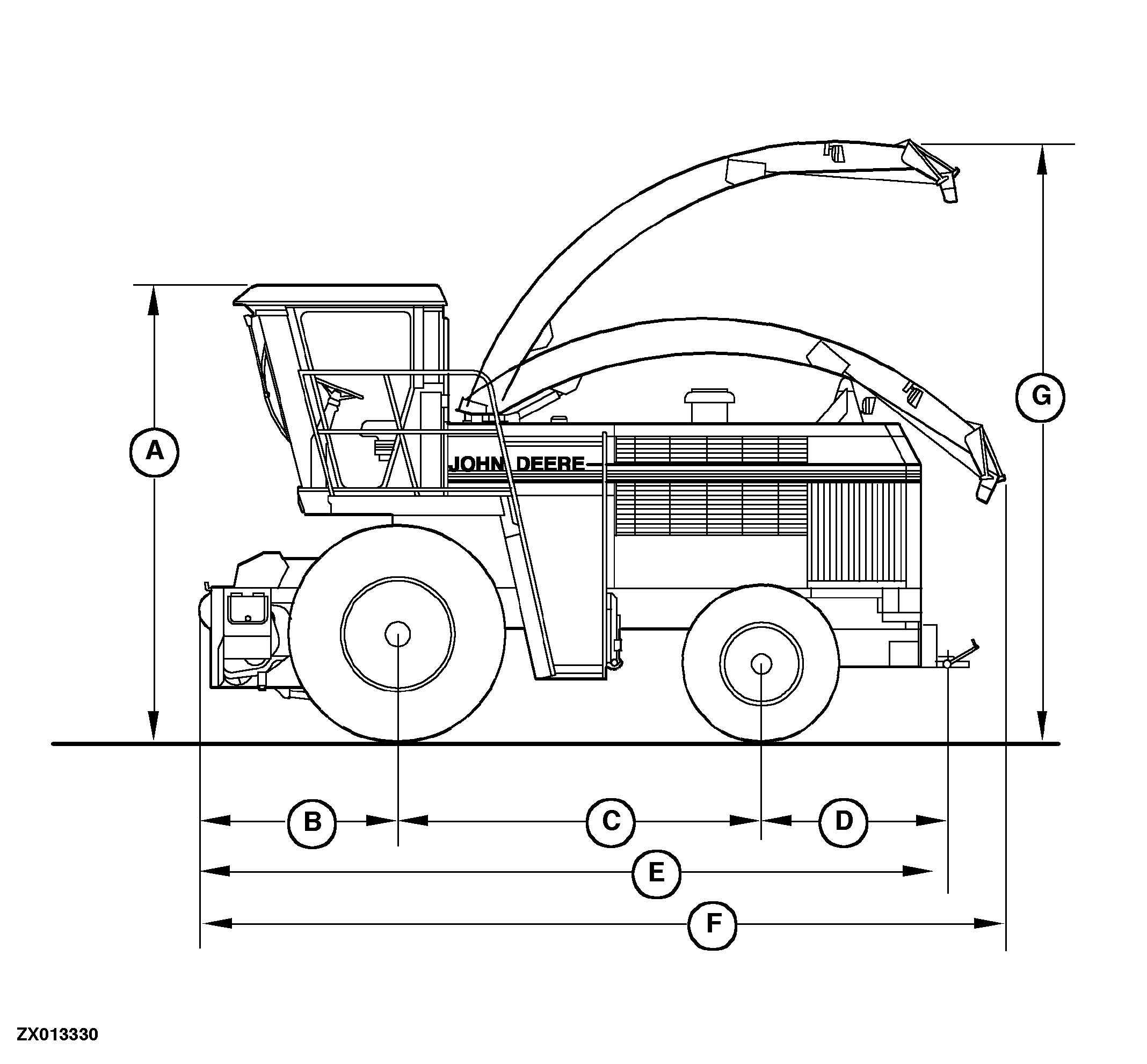

ZX013330


A-3.60-3.66 m (11.81-12.01 ft)1
B-1.61 m (5.28 ft)
C-2.95 m (9.68 ft) (without rear wheel drive); 2.93 m (9.61 ft) (with rear wheel drive)


D-1.39 m (4.56 ft) (without rear wheel drive); 1.41 m (4.63 ft) (with rear wheel drive)


E-5.95 m (19.52 ft)
F-6.56 m (21.52 ft)


G-5.20 m (17.06 ft) max.

1 This dimension depends on tire size.

ZXOMUSFH010131 -19-01NOV97-2/4

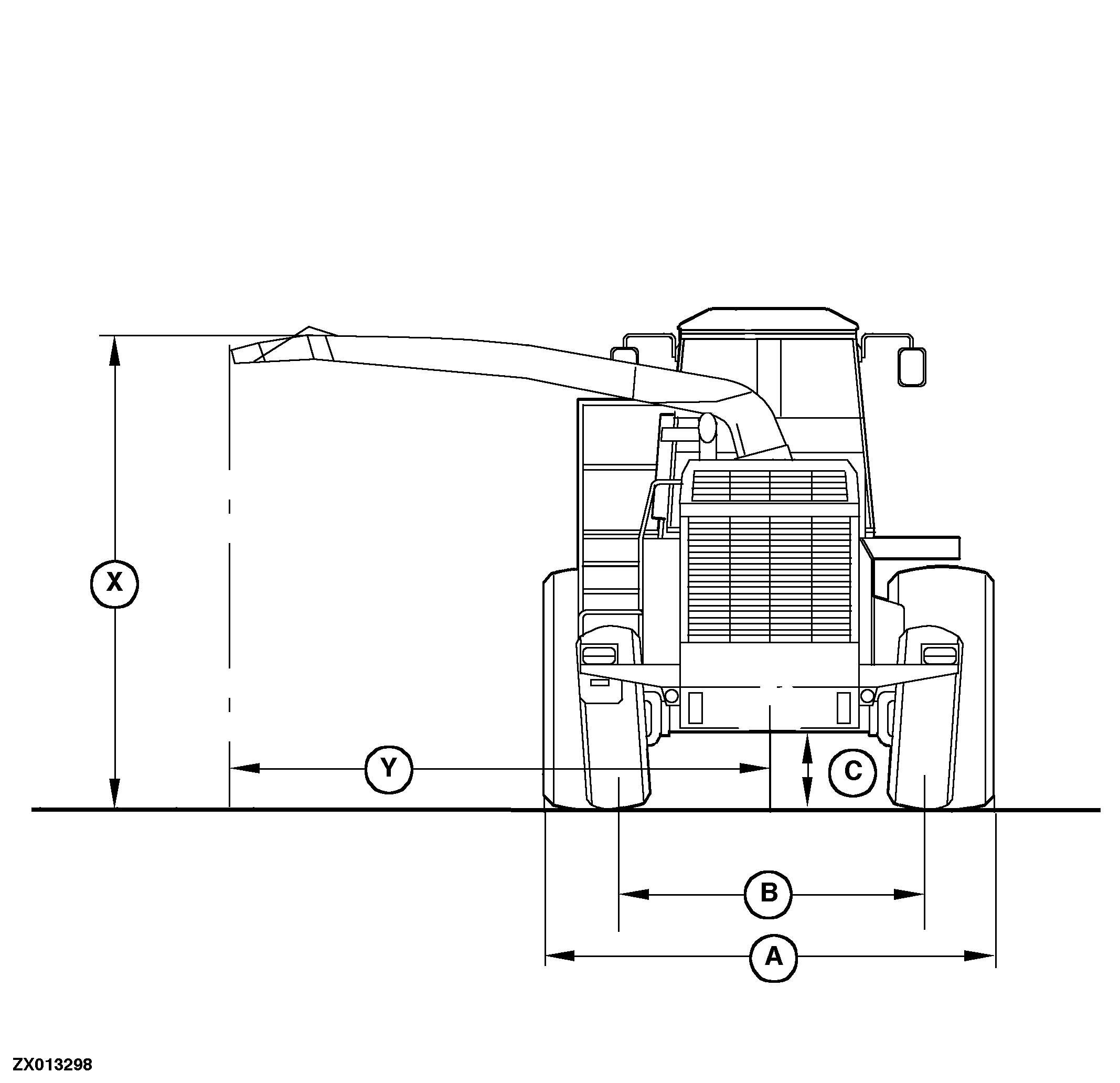

ZX013298


A-2.92-3.34 m1 (9.58-10.96 ft)


B-2.02-2.41 m1, 2 (6.63-7.91 ft)
C-0.46 m (1.51 ft) min.


Y-3.34 m (10.96 ft)


X-3.48 m (11.42 ft)

1 These dimensions depend on tire size.

2 This dimension applies to adjustable rear axle when no holes are visible on each side.

ZXOMUSFH010131 -19-01NOV97-3/4

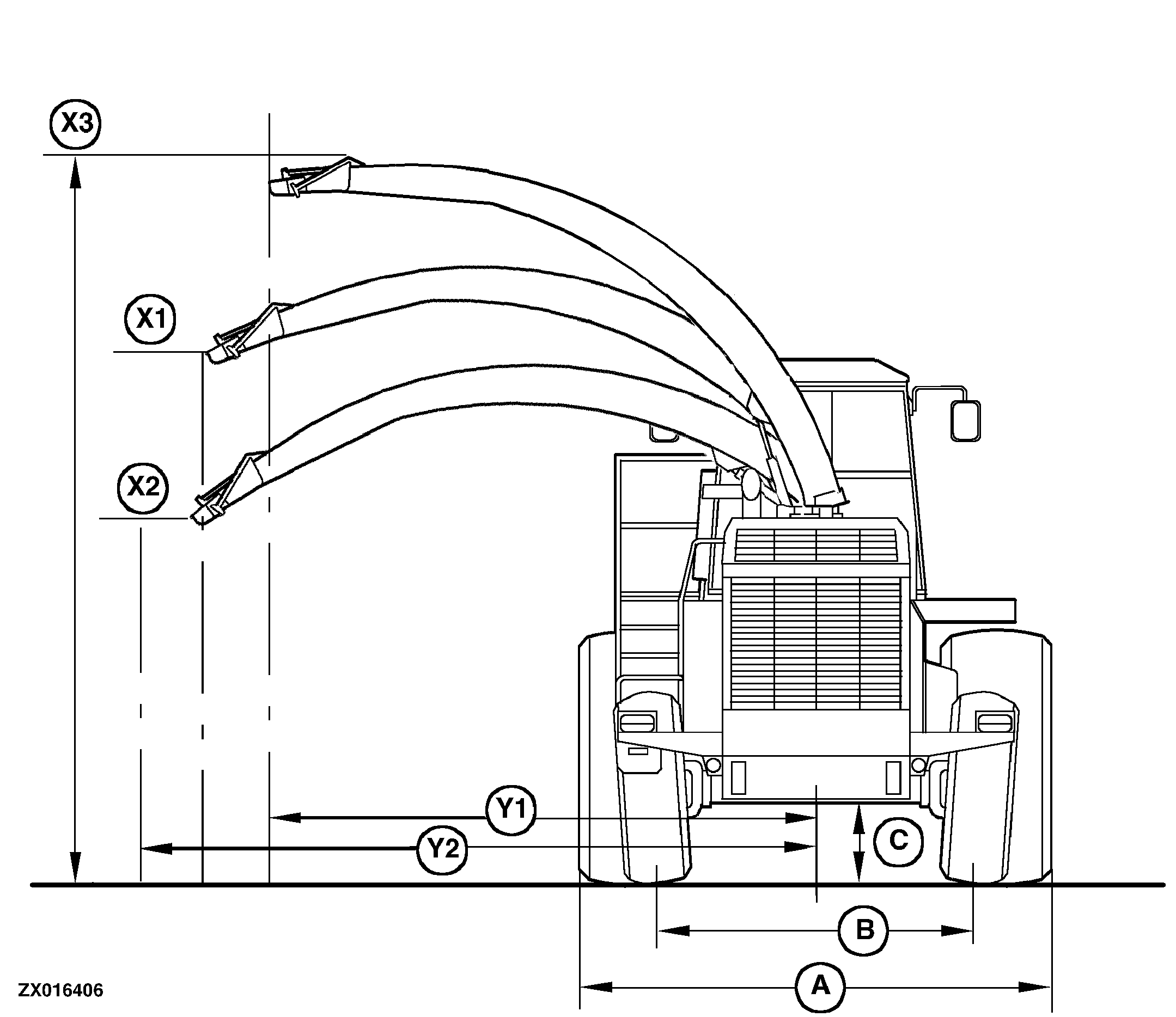

ZX016406


A-2.92-3.34 m1 (9.19-10.96 ft)
B-2.02-2,41 m1, 2 (6.63-7.91 ft)


C-0.46 m (1.51 ft) min.
X1-4.70 m (15.42 ft)


X2-2.20 m (7.22 ft)
Y1-3.78 m (12.40 ft)


Y2-4.34 m (14.24 ft)
X3-6.00 m (19.69 ft)

With spout working height X1=4.70 m (15.42 ft), dimension from harvester center to spout end is Y1=3.78 m (12.40 ft). With spout working height X2=2.20

m (7.22 ft), dimension from harvester center to spout end is Y2=4.34 m (14.24 ft). X3=max. height.

1 These dimensions depend on tire size.

2 This dimension applies to adjustable rear axle when no holes are visible on each side.

ZXOMUSFH010131 -19-01NOV97-4/4
