Turn On Ignition

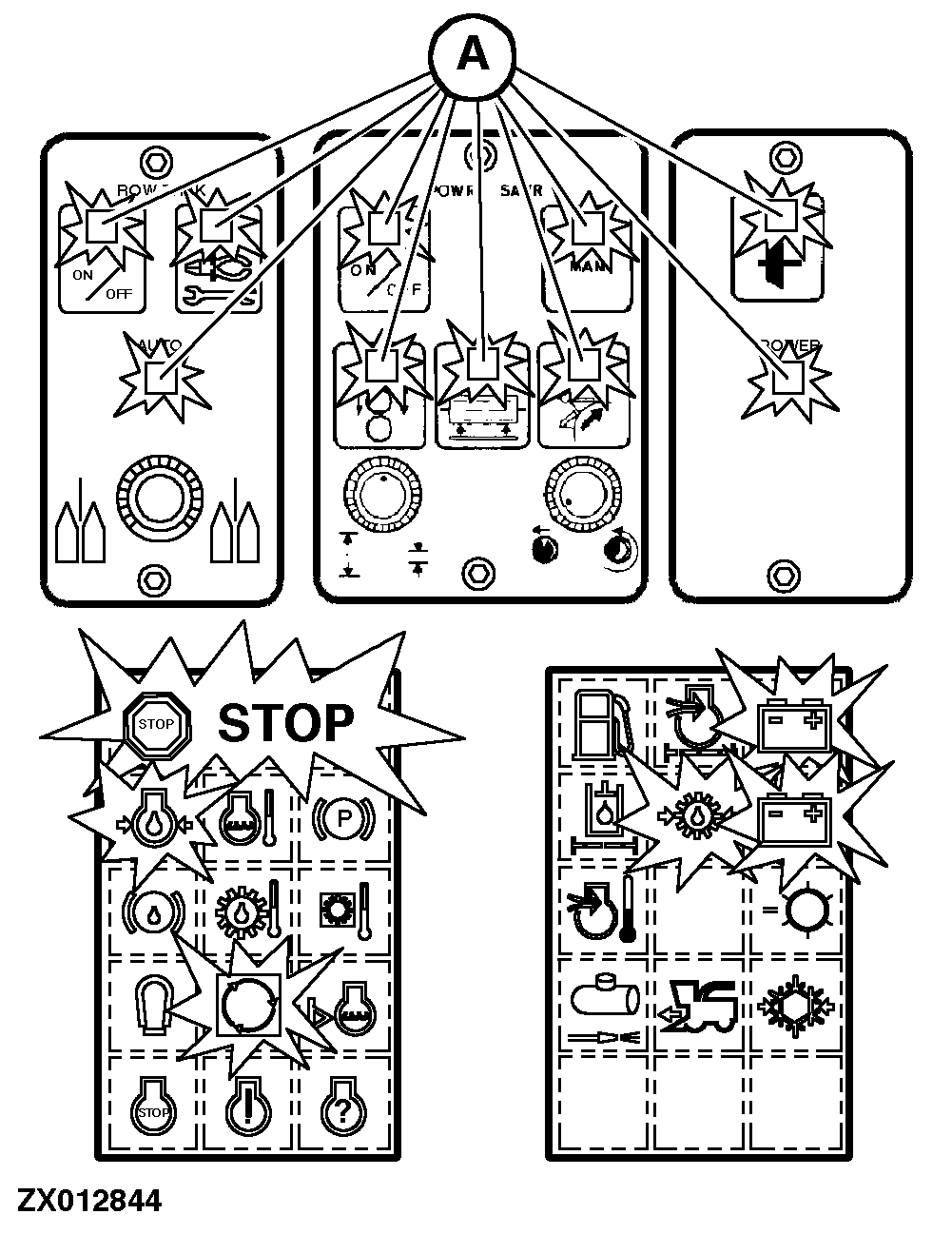

The following indicator lights will glow:

• All indicator lights (A) of automatic functions for approx. 2 seconds
• POWER control light of r.h. control unit
• Warning (STOP) light
• Engine oil pressure (6650-6850 only)
• Rotary radiator screen
• Alternator indicator lights 1 and 2
• Hydrostatic charge pressure

In addition, the buzzer will sound (continuous signal).

NOTE: When ignition is turned on, a self-test of the engine electronic system is carried out on 6950 forage harvester. For details, see "Service-Electrical System".
