Fan Switch

IMPORTANT: Always switch on fan before heating or air conditioning system is set to work.

A four-speed switch controls the fan which slightly pressurizes the cab. To switch on fan (only possible with ignition turned on), turn switch clockwise.

Position 0 = Fan off

Fan speed increases if switch is turned further to the right (clockwise).

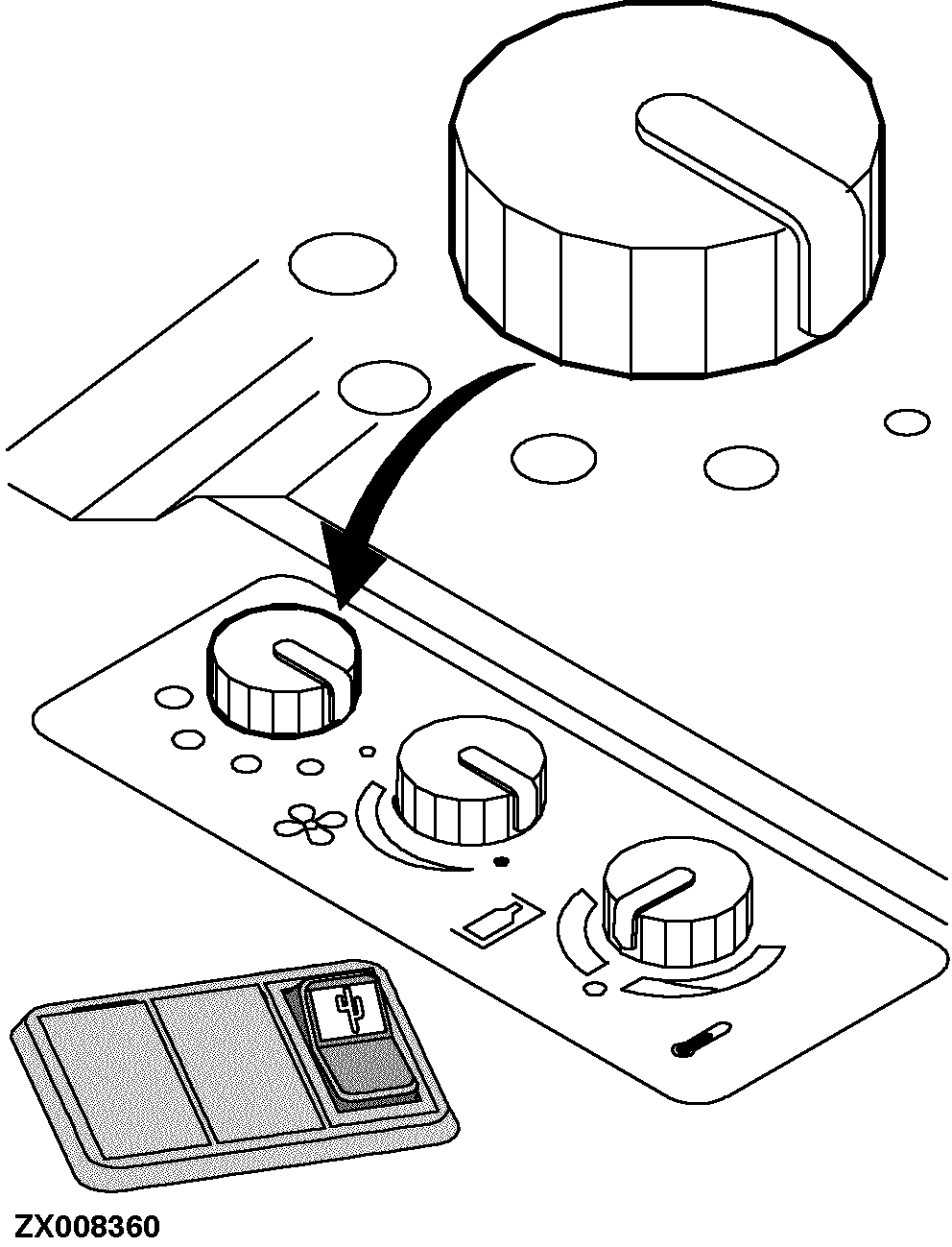

ZX008360

ZX,OMSPFH000155 -19-01JAN96-1/1
