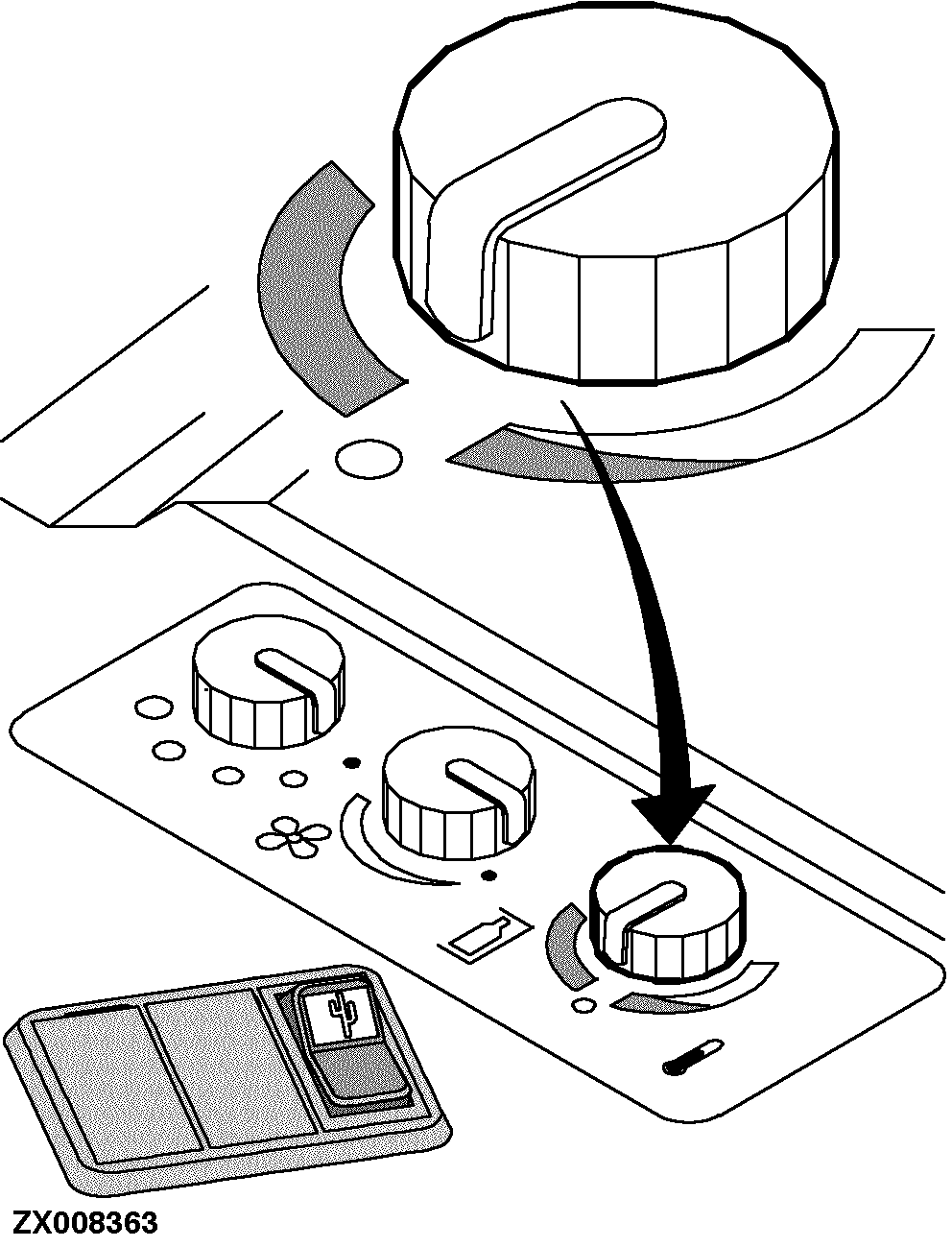

Air Conditioning/Heater Switch

I - Air Conditioning System

Before switching on the air conditioning system, the fan must be operating. Turn switch counterclockwise to switch on air conditioning. Turning switch all the way counterclockwise will give maximum cooling.

IMPORTANT: Operate air conditioning system several times each year - even in the cooler seasons - to lubricate all moving parts of the system.

II - Heater

Before switching on the heater, the fan must be operating. Turning switch clockwise will open heater valve. Turn switch all the way clockwise for maximum heating effect.

NOTE: Also refer to "Dehumidifier Tumbler Switch".

ZX,OMSPFH000157 -19-01JAN96-1/1
