Control Lights of Automatic Function Control

When ignition is turned on the automatic function control lights are checked automatically. With the exception of POWER control light in unit (C) all lights go out after approx. 2 seconds.

If the key for activating an automatic function is pressed, the key control light glows as long as the automatic function is running. Once the function is finished the light will go out or flash in case of a malfunction.

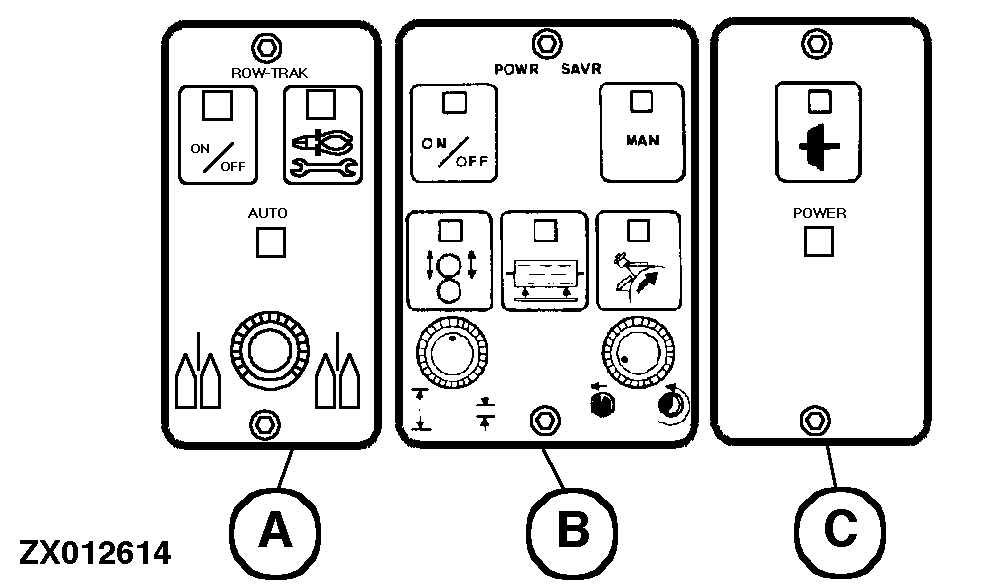

A-Control unit for ROW-TRAK™
B-Control unit for kernel processor, stationary knife and knife sharpening
C-Function control light

ROW-TRAK is a trademark of Deere & Company.

ZX,OMSPFH000206 -19-01NOV97-1/1
