INFO-TRAK™ Monitor Service Information

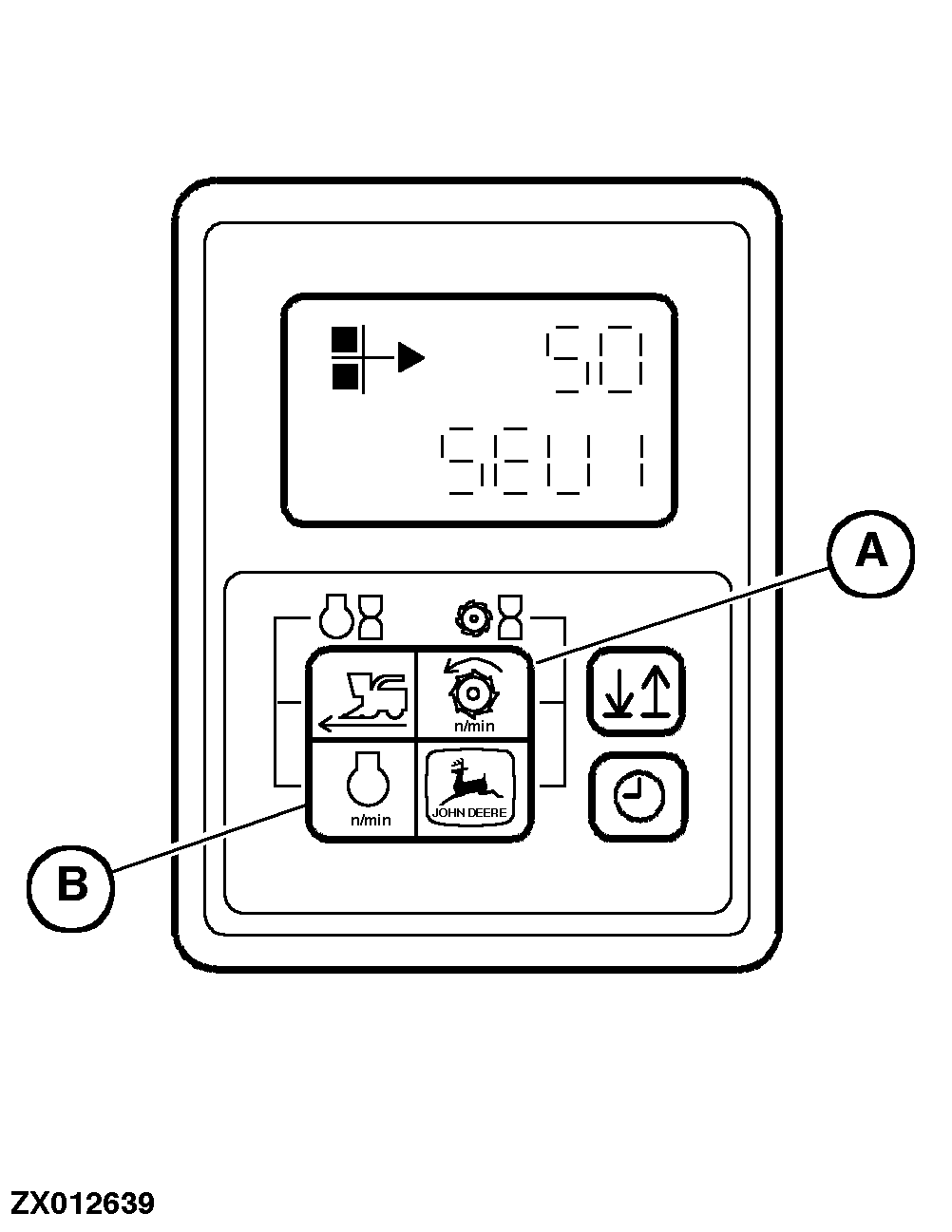

Every 50 hours of operation the INFO-TRAK ™ monitor will display a SERVICE information (SEUx) in the lower line. The upper line shows engine operating hours.

IMPORTANT: Perform necessary service work described under "Lubrication and Periodic Service".

Press any key to delete SERVICE information immediately (it will reappear when ignition is turned on next time).

To delete SEU display definitely (i.e. until next 50 operating hours are completed) after service work has been carried out, press keys A + B simultaneously while turning on ignition.

INFO-TRAK is a trademark of Deere & Company.

ZX,OMSPFH000218 -19-01NOV97-1/1
