Increasing Kernel Processor Roll Clearance (Manual Adjustment)

Start engine and run at low speed.

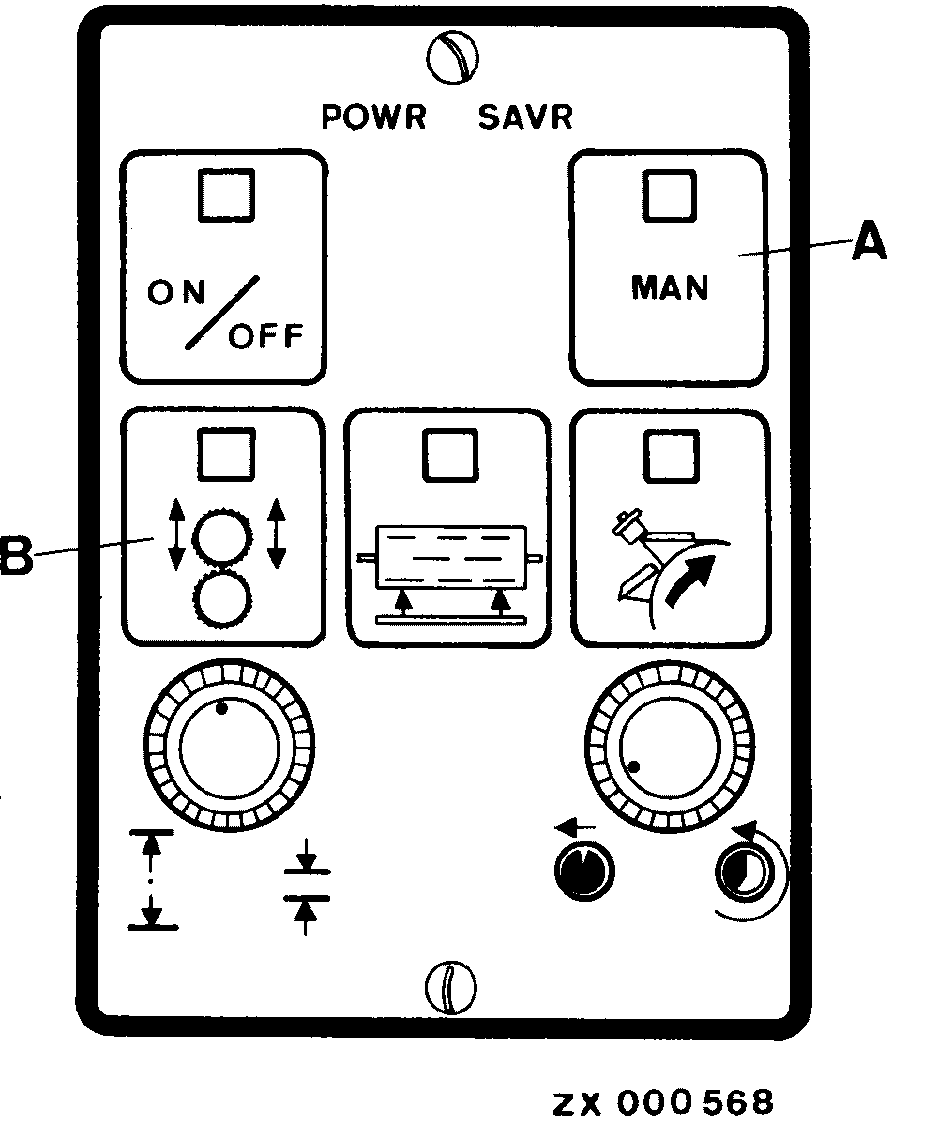

Press key (A). Manual adjustment is activated and key indicator light is on.

Press key (B). As long as this key is pressed, key indicator light will be on and adjusting motors will be running alternately for 5 seconds until maximum clearance is obtained.
