OMZ92984: 6650, 6750, 6850 and 6950 Self-Propelled Forage Harvesters (504992- ), Block File: ZX_OMSPFH000230_19

Adjusting Operator's Seat Position

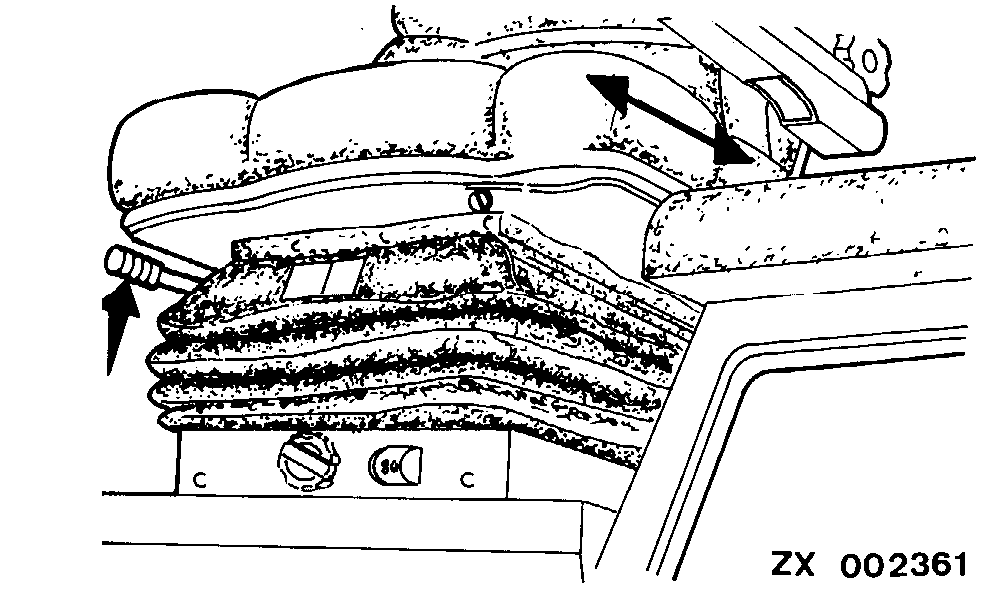

Pull up locking lever and slide seat forward or backward.

ZX,OMSPFH000230 -19-11MAY92-1/2

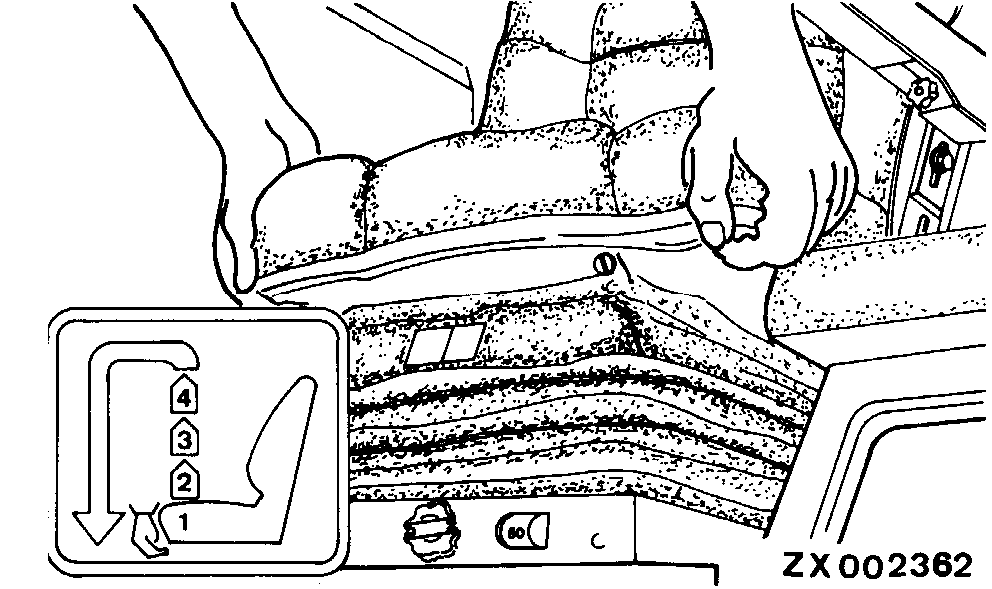

To adjust height of seat, grip seat with both hands and lift upward (three detent positions). Should the seat be raised above the third detent position, it will return to lowest position.

ZX,OMSPFH000230 -19-11MAY92-2/2
