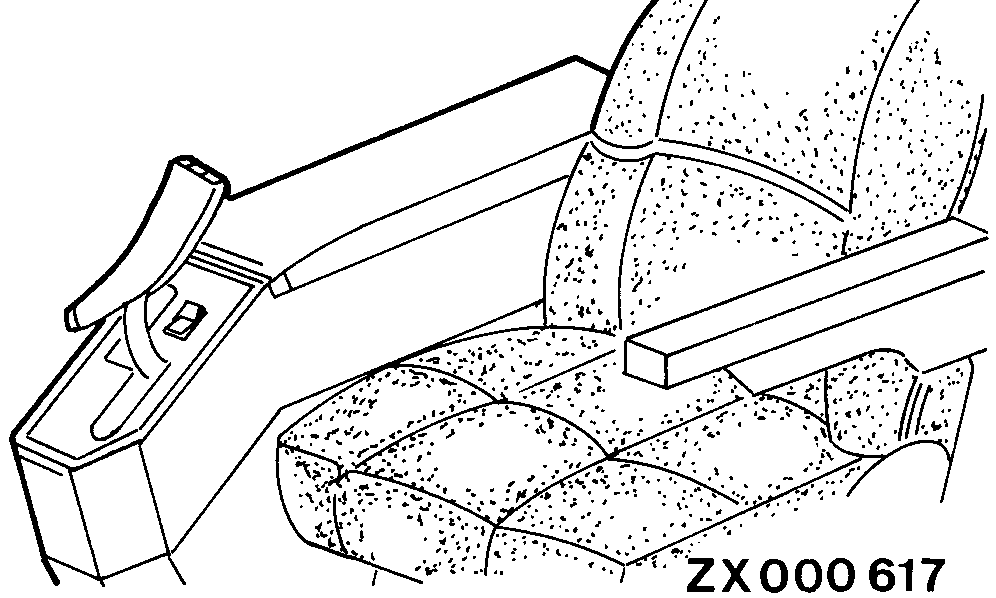

Operator's Seat Safety Switch With Alarm

If the operator leaves the seat for more than five sec- onds during field operation, feed rolls, harvesting unit, header rotating crop dividers will be shut off and alarm will sound.

To reengage feed rolls and harvesting unit, move har- vesting unit/reverser switch to neutral and then to ON position.

To test the warning alarm:

1. Make sure everyone is clear of machine.

2. Sound horn, turn engine key on, and start engine.

3. Sound horn and engage main clutch switch.

4. Increase engine rpm to operating speed.

5. Reduce engine speed to slow idle, shut off main clutch switch, and turn engine key to off position.

6. Get out of operator's seat, wait five seconds, open cab door and listen for alarm.

7. If alarm is not heard, alarm has a malfunction. Contact your John Deere dealer.

ZX000617

ZX,OMSPFH000233 -19-21FEB01-1/1
