Increasing Stationary Knife-to-Knife Clearance (Manual Adjustment)

IMPORTANT: Thoroughly clean area between smooth roll and stationary knife before stationary knife is set back - in direction of forward travel (X) - to ensure that stationary knife movement is not impaired.

Start engine and run at low speed.

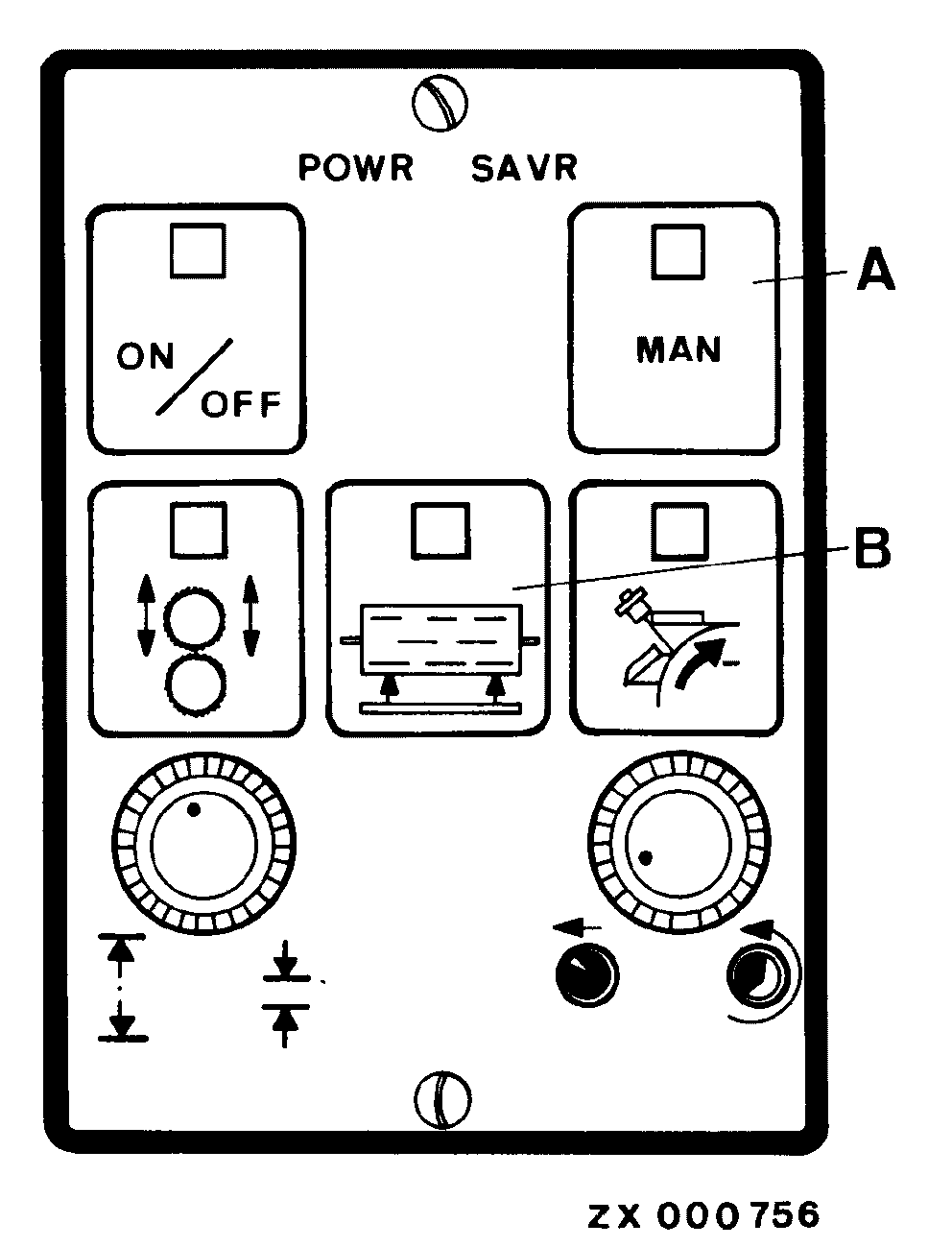

Press key (A); manual adjustment is activated and key indicator light will be on.

Press key (B). As long as this key is pressed key indicator light will be on and adjusting motors will be running alternately for 0.5 seconds until maximum clearance is obtained.

A-Key for manual operation
B-Stationary knife key
X-Direction of travel and stationary knife movement with manual adjustment

ZX,OMSPFH000376 -19-01NOV99-1/1
