Adjusting Harvesting Unit Speed

    6650-6850

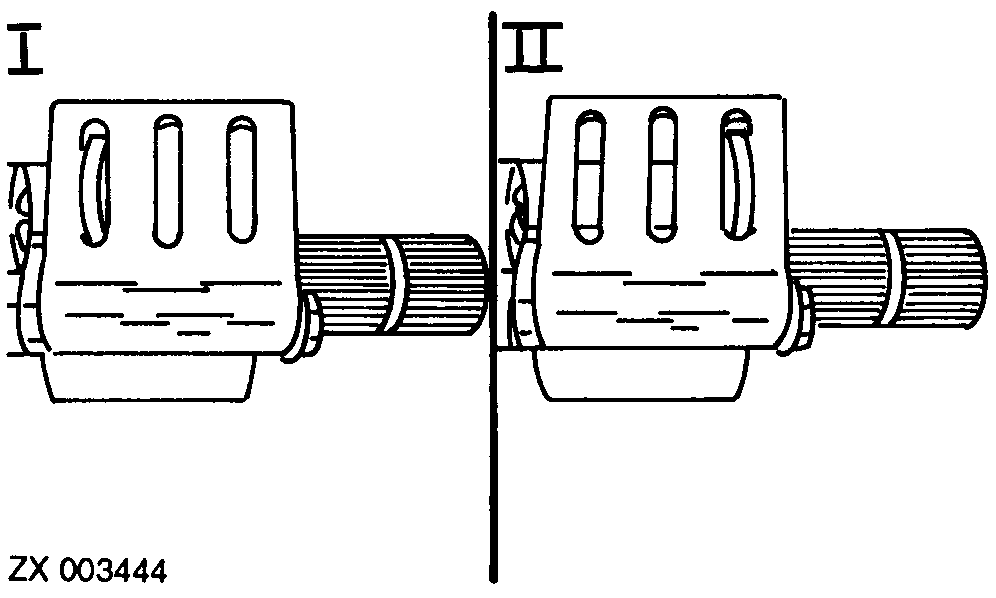

  • Inner shift position (I) - fast, 463 rpm
  • Outer shift position (II) - slow, 350 rpm

    6950

  • Inner shift position (I) - fast, 530 rpm
  • Outer shift position (II) - slow, 401 rpm

    6650-6950

  • Middle shift position - neutral
ZX003444

ZX,OMSPFH000562 -19-01NOV97-1/1
