When Ferrous Metal is Detected

CAUTION: To avoid personal injury, never search for metal unless all drives are disengaged, engine and ignition switch shut off and all moving parts have stopped.

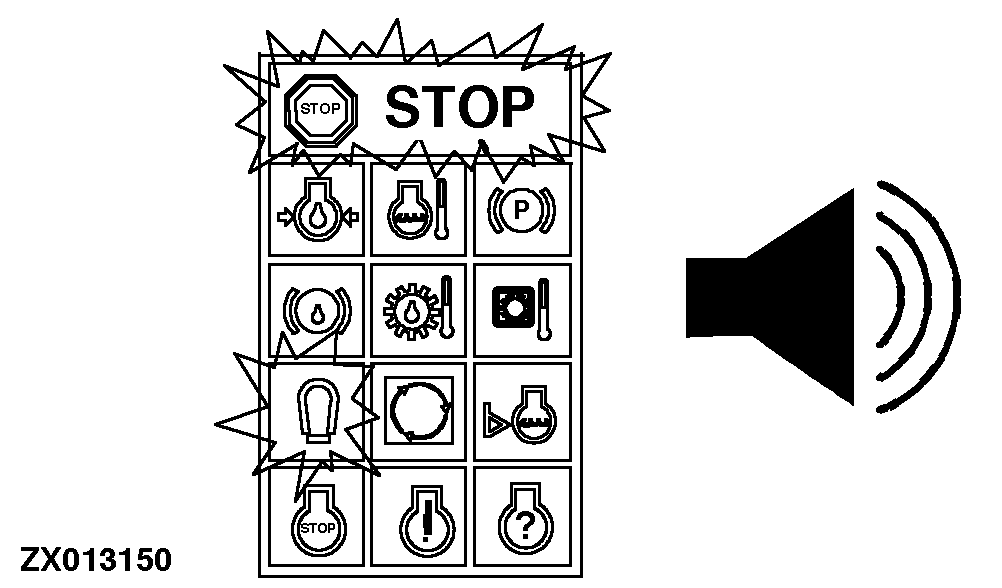

When ferrous metal is found by the metal detector, the red STOP light and the metal detector indicator light will glow and the warning signal will be heard. Locking pawl magnet (A) is without current and pulled down by spring force. The locking pawl will stop the feed rolls immediately. At the same time, the electromagnetic clutch will disengage.

ZX,OMSPFH000569 -19-01NOV97-1/2

NOTE: The electromagnetic clutch may also be disengaged by operating quick stop function of multi-function lever, stopping feed rolls and harvesting unit immediately.

Searching for Metal:

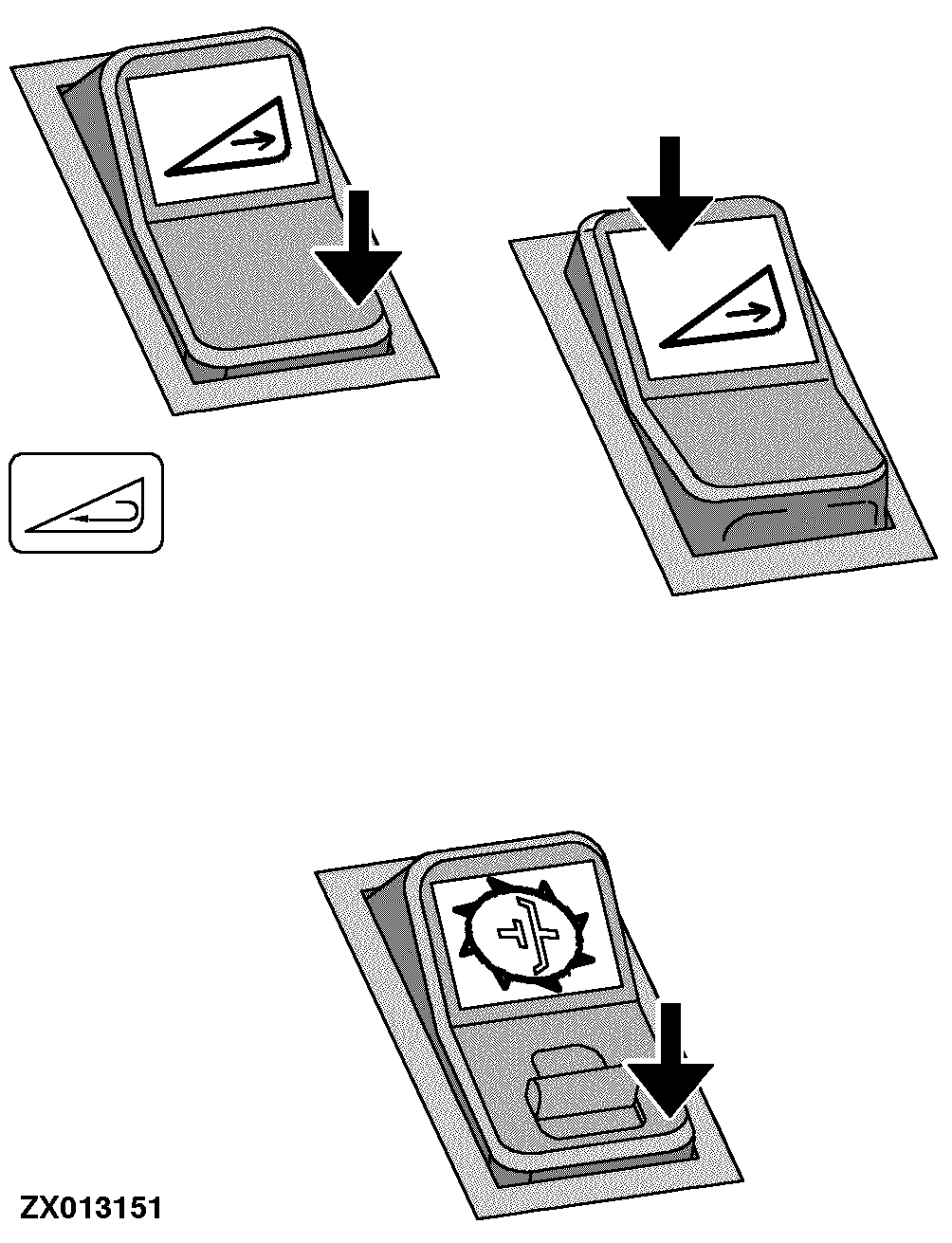

Shift feed rolls into reverse long enough to reverse the crop out of the feed rolls, then shift the feed rolls into neutral.

Disengage the main clutch.

Shut off engine and wait until all moving parts have stopped.

Search for the metal and remove it.

ZX,OMSPFH000569 -19-01NOV97-2/2
